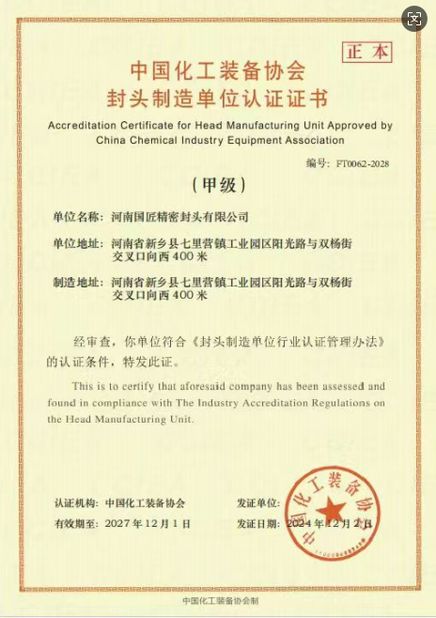

Certification

I'm Online Chat Now

SUS304 Ellipsoidal Dished Head 2700mm Open ID 8mm Thickness GB/T 25198-2023 Compliant

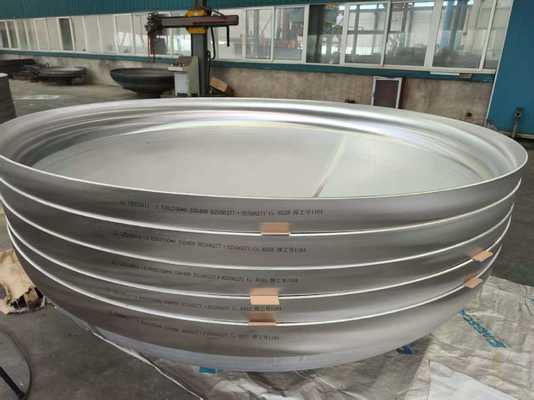

Large Image : SUS304 Ellipsoidal Dished Head 2700mm Open ID 8mm Thickness GB/T 25198-2023 Compliant

Product Details:

Place of Origin:	Henan, China
Brand Name:	Guojiang
Certification:	ASME, PED, GB, ISO
Model Number:	EHA 2700×8

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$25-10000
Packaging Details:	Wooden cases, wooden pallets, steel pallets, or customized according to customer requirements
Delivery Time:	10-30 days
Payment Terms:	T/T,L/C
Supply Ability:	50,000 pieces per month

Contact Now Chat Now

SUS304 Ellipsoidal Dished Head 2700mm Open ID 8mm Thickness GB/T 25198-2023 Compliant

description

Material:	Aluminum, 304, 316, 321, 2205, Q235, A36, Q245R, Q345R, SA-516Gr.60/65/70, 16MnDR, S275JR Etc..	Diameter:	76mm - 10000mm
Thickness:	1mm -300mm	Customization:	Customise Products According To The Drawings And The Requirements
Downstream Aplications:	Industrial Dewar Flask Heads,on-board Gas Cylinder Heads,quick-cooling Storage Tank Heads,on-board Storage Tank Heads,heads For Food And Medical Equipment, ,water Purification Filter Pipeline End Cap，and Heads For Magnetic Resonance Equipment.	Roughness:	RA 0.1-0.8μm
Highlight:	SUS304 Ellipsoidal Dished Head , Ellipsoidal Dished Head 2700mm , SUS304 Ellipsoidal Dish Head

SUS304 Ellipsoidal Dished Head with 2700mm Open Inner Diameter and 8mm Thickness

Product Overview

S30408 Ellipsoidal-Dished-Head (Open Inner Diameter 2700mm, Thickness 8mm)

Henan Guojiang is a leading manufacturer with over 12 years of experience in precision pressure vessel components, specializing in R&D, production, and customization of dished heads. Our products are exported to more than 10 countries and recognized for their reliability and precision in industrial applications.

Core Specifications

Open Inner Diameter	2700mm (customizable for small storage tanks and atmospheric pressure vessels)
Thickness	8mm (optimized for atmospheric to low-pressure conditions: 0.1MPa-0.5MPa)
Material	S30408

Manufacturing Advantages

Cold pressing forming process preserves the metallographic structure of SUS304 stainless steel, ensuring structural stability and sealing adaptability. Designed for quick installation without secondary processing.

Quality Assurance

Inspection Protocols: 100% full inspection, including UT, PT, and dimensional checks
Compliance: GB/T 25198-2023, ASME BPVC Sec.VIII Div 1, GB 150.4 standards

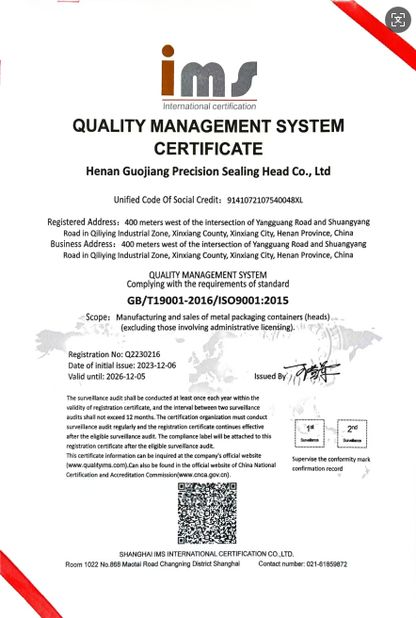

Certifications: ISO 9001:2015, ISO 14001:2015, ASME "U" Stamp approval

Applications

Small industrial water storage tanks
Atmospheric pressure chemical fluid transfer equipment
Civil and commercial water purification equipment storage tanks

Packaging & Customization

Packaging: Shock-absorbing bubble film with reinforced cartons
Customization: Inner diameter (76mm-10000mm), thickness (2mm-300mm), and shape adjustments available

Key Features

Excellent rust resistance for reduced maintenance costs

Precise sizing for direct connection with equipment interfaces

Lightweight design balances durability and material efficiency

Versatile compatibility with mainstream storage tank models

Tag:

Pressure Vessel Heads,

Ellipsoidal Dished Head,

Ellipsoidal Dish Head
