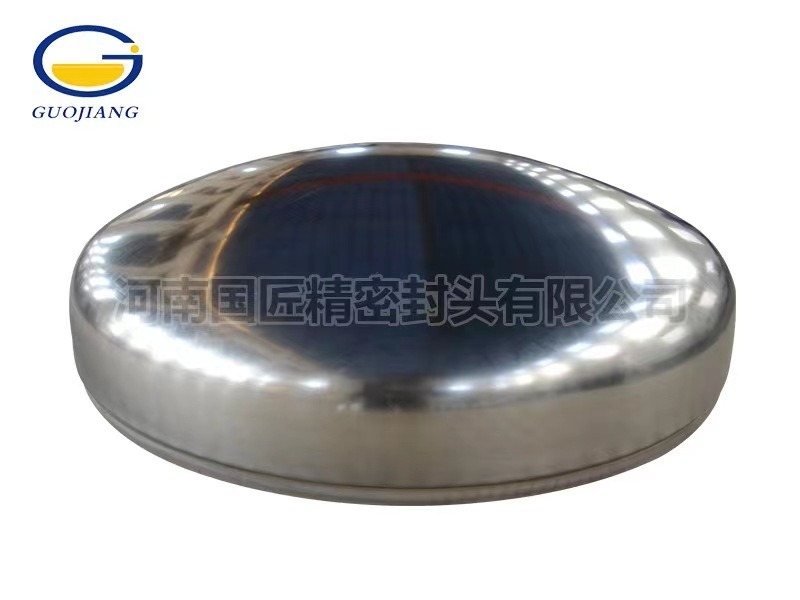

304 Stainless Steel Ellipsoidal Head 900mm ID 5mm Thickness Pressure Vessel Dished Head

As a leading domestic manufacturer specializing in precision pressure vessel components, Henan Guojiang boasts 12+ years of expertise in R&D, production, and customization of dished heads. Our products are trusted by clients across 60+ countries, with a strong focus on meeting high-standard industrial demands for reliability and precision.

• Inner Diameter: 900mm - Tailored to fit mid-sized pressure vessels (e.g., reactors, storage tanks) commonly used in chemical, pharmaceutical, and food processing sectors. Our CNC machining technology ensures diameter deviation ≤ ±0.8mm, enabling seamless integration with tank bodies and minimizing assembly gaps.
• Nominal Thickness: 5mm - Calibrated based on typical operating pressures (0.1MPa - 80MPa) and compatibility with corrosive/non-corrosive media. The thickness design optimizes structural rigidity while reducing unnecessary material consumption.
• Material: 304 Stainless Steel - Sourced from top-tier suppliers with full Material Test Certificates (MTC) provided. This food-grade alloy features excellent corrosion resistance with chromium (18%) and nickel (8%) composition, forming a stable oxide layer that withstands acidic/alkaline environments and prevents media contamination.

Ideal for SUS304 material (thin to medium thickness), cold forming avoids thermal deformation and preserves the material's original mechanical properties (e.g., ductility, weldability). Our 8 sets of 800-ton hydraulic presses ensure uniform shaping of the elliptical structure, adhering to the 2:1 major-to-minor axis ratio specified in GB/T 25198 and ASME standards for balanced stress distribution under pressure.

• Inspection Protocols: 100% inspection coverage for key performance indicators, including UT (ultrasonic testing) for internal defects, PT (liquid penetrant testing) for surface flaws, and dimensional accuracy checks using 3D laser scanners.
• Applicable Standards: Compliant with GB/T 25198-2010 (China), ASME BPVC Sec.VIII Div.1 (North America), and PED 2014/68/EU (Europe), ensuring global market access.
• Certifications: ISO 9001:2015 (Quality Management System), ISO 14001:2015 (Environmental Management System), and ASME "U" Stamp approval.

The EHA900*5 SUS304 elliptical dished head is widely used in:

• Chemical industry (corrosive fluid storage tanks, reaction vessels)
• Food & beverage (milk processing tanks, juice storage equipment)
• Pharmaceuticals (sanitary-grade reactors, sterile storage containers)
• New energy (hydrogen storage tanks, battery material mixing vessels)

Our elliptical dished heads hold a 25%+ market share in China's mid-sized pressure vessel component segment, with export volumes accounting for 20% of total sales (major markets: Southeast Asia, Europe, North America).

• Packaging: Export-grade wooden crates (fumigated) for single-piece precision heads; steel pallets (load capacity ≥ 800kg) for bulk orders. All packaging is shockproof and waterproof.
• Customization Services:
  • Tailored specifications (diameter: 60mm - 10000mm; thickness: 1mm -300mm)
  • Free technical support: FEA stress analysis, 2D/3D drawing design
  • Sample delivery: 3-5 pieces available for performance testing within 20 working days

• 24-hour technical consultation hotline
• On-site troubleshooting within 72 hours for domestic clients, and 5 working days for overseas clients

From material sourcing to final inspection, Henan Guojiang's EHA900*5 304 elliptical dished head delivers consistent quality and performance—your trusted partner for enhancing pressure vessel safety and operational efficiency!
