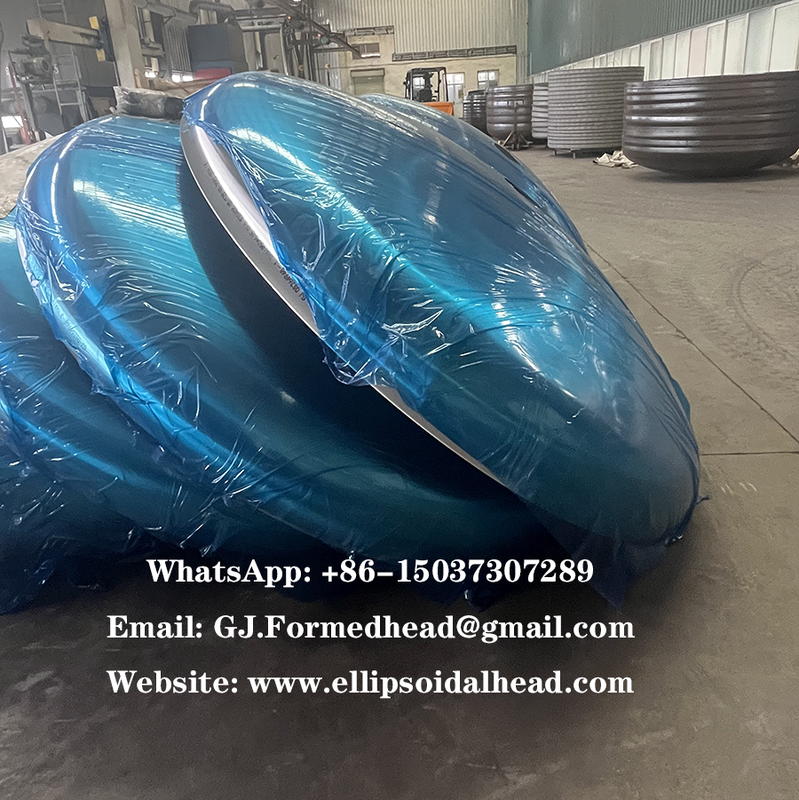

ASME & PED Certified Flanged and Dished Heads Manufacturer in China
1.Flanged and Dished Heads Specifications:
ASME & PED Certified Flanged and Dished Heads. Materials available: Stainless Steel, Carbon Steel, Duplex, Alloy Steel. Manufactured by Henan Guojiang Precision Formed Head Co., Ltd.
We Accept Kinds of Custom Orders, and we Can Fabricate Flange and Dised Heads in a Broad Range of Sizes and Shapes Accoring to your Drawings and Specifications.
| Flanged and Dished Heads Specifications |
| Manufacturing Standards |
ASME, PED/EN, DIN, GB/T, and Other Customer-Specified Standards. |
| Tolerance |
In Accordance with The Limits Defined by The Applicable Manufacturing Standards. |
| Shapes Available |
Elliptical, Flanged and Dished Heads/Torispherical, Conical/Toriconical, Flat Type, Flanged and Reversed Type, etc. |
| Custom Order |
Accepted |
| Diameters |
from 76mm to 4000mm with Cold Forming. Hot Forming Available for Larger Diameters. |
| Thickness |
from 2mm to 25mm with Cold Forming. Hot Forming Available or Larger Thickness. |
| Non-Destructive Testing (NDT) |
RT=Radiographic Testing; PT=Penetrant Testing;
UT=Ultrasonic Testing; MT=Magnetic Particle Testing.
|
| Certificates |
ISO, ASME, PED. |
2. Flanged and Dished Heads Certificates:
Our Flanged and Dished Heads are Certified with ISO, ASME & PED Certificates.
All Flanged and Dished Heads are Manufactured in Compliance with ASME, PED/EN, DIN, GB/T and other Customer-Specified Standards. We Provided Full Documentation Including Material Test Certificates EN 10204 3.1 and Non-Destructive Testing (NDT) Reports Upon Request.
| Certification Standards |
| GB/T 25198-2023 |
| ASME BPVC Sec.VIII Div 1 |
| PED (Pressure Equipment Directive) |
| ISO 9001:2015 |
| ISO 14001:2015 |
3. Flanged and Dished Heads Applications:
Flanged and Dished Heads have a Wide Range of Applications. Available Raw Materials Include Stainless Steel, Carbon Steel, Duplex Steel, Alloy Steel, and Others Request.
Mainl Applications of Flanged and Dished Heads are as Follows:
(1). Brewing & beverage tanks (beer, wine, cider, juice, dairy processing)
(2). Food & sanitary processing vessels
(3). Pressure vessels and process reactors
(4). Chemical storage and reaction tanks
(5). Oil & gas, petrochemical equipment
(6). Water treatment & wastewater tanks
(7). Pharmaceutical / biotech process tanks
(8). Industrial hot water tanks
(9). Bulk solid silos and dust collectors
4. Flanged and Dished Heads Quality Control:
Flanged and Dished Heads Manufactured by Henan Guojiang Precision Formed Head Co., Ltd. Adopted Strict Quality Control Management System.
(1). Our Order Management System assigns Unique Production Numbers to Enable Full Traceability of Flanged and Dished Heads Manufactured in our Factory.
(2). It Allows Accurate Lead-Time Calculation, so Customers can be Fully Informed of the Delivery Schedule Prior to Placing Their Order.
(3). Each Manufacturing Step is Monitored, Verified and Signed Off by the Responsible Person. All Records are Archived in our Order Management System for Traceability Purposes.
(4). EN 10204 3.1 Material Test Certificates are Supplied for Every Order. Documents Include Furnace Heat Numbers to Ensure Complete Material Traceability.
5. Frequently Asked Questions (FAQ):
Q: What Manufacturing Standards Do you Follow for Flanged and Dished Heads?
A: We Fabricate Flanged and Dished Heads According to Customer Requirements.
The Manufacturing Standards Include ASME, PED/EN, DIN and GB/T, etc.
Q: Can you Perform Non-Destructive Testing (NDT) on Flanged and Dished Heads.
A: Yes, Available NDT Methods Including UT, PT, RT and MT. NDT Reports will be Provided Together with Certificates.
Q: Is full Traceability Available for your Flanged and Dishes Heads?
A: Yes, Our Order Management System assigns Unique Production Numbers. Every Manufacturer Steps is Inspected and Signed off By the Responsible Person, and Records are Archived for Traceability Audit.
Q: Can you make Custom Flanged and Dished Heads with Non-Standard Crown Radius or Knuckle Radius?
A: Yes, We can Babricate Custom F & D Heads with Non-Standard Crown Radius and Knuckle Radius According to your Technical Drawings and Specifications.
