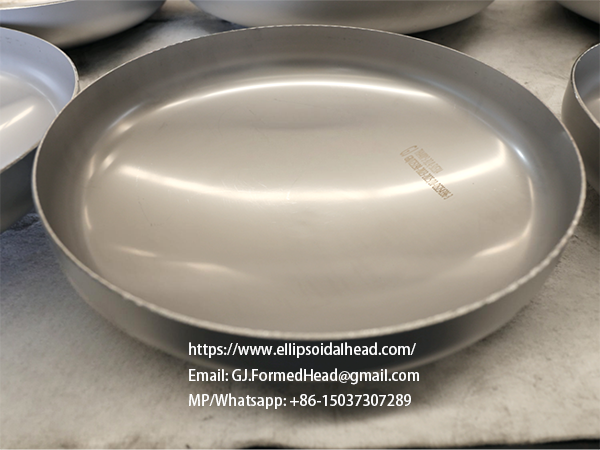

ASME Certified U Stamp Stainless Steel Dish Head Manufacturer in China
1. Traceability of Dish Head:
(1). The Full Traceability of Both Raw Materials and Finished Dished Head Serves As The Primary Guarantee for Stable Quality.
(2). Every Production Step is Guided by a Dedicated Production Process Sheet, Which is Generated by Our Technical Department for Each Individual Order.
(3). The Production Process Sheet compiled in Accordance with the customers’ drawings, Product Specifications, and Detailed Technical Requirements. These Sheets Act as The Official Production Standards for Workshop Staff.
(4). All workers Must Strictly Follow The Process Sheets during manufacturing and sign their names next to each procedure they are responsible for.
Once production is finished, all process sheets are returned to the technical department for digital filing and uploaded to our internal database.
2. Quality Inspection of Dish Head:
(1). Inspection Protocols: 100% full inspection, including UT, PT, and dimensional checks
(2). Compliance Standards for Tank Dished Head :
Compliance: GB/T 25198-2023, ASME BPVC Sec.VIII Div 1
Certifications: ISO 9001:2015, ISO 14001:2015, ASME "U" Stamp approval.
| Specifications for Main Size of Dish Head (Various Sizes of Mold in Our Factory) |
| NPS/Inch |
OD |
SCH10
|
SCH20 |
SCH40 |
| 2inch (DN50) |
60.3mm |
2.77mm |
3.05mm |
6.02mm |
| 3inch(DN80) |
88.9mm |
3.05mm |
3.05mm |
7.11mm |
| 4inch(DN100) |
114.3 |
3.05mm |
3.05mm |
6.02mm |
| 6inch(DN15) |
168.3 |
3.05mm |
3.05mm |
7.11mm |
| 8inch(DN200) |
219.1mm |
3.05mm |
3.05mm |
8.18mm |
| 12inch(DN300) |
323.9mm |
3.05mm |
3.05mm |
10.97mm |
3. Certifications of Dish Head from Henan Guojiang Precision Formed Head Co., Ltd.
Henan Guojiang Precision Formed Head Factory is a professional dish head manufacturer in China certified with ASME and PED (Pressure Equipment Directive). Our certifications enable us to supply pressure components to European and North American markets, complying with strict safety, reliability and performance criteria for pressure vessels and key industrial equipment.
We attach top priority to stable product quality. We launched a complete internal traceability system two years ago, greatly boosting our quality performance and winning widespread recognition and trust from global clients.
4. Main Products from GJ Formed Head Factory:
(1) Elliptical Head
(2) Torispherical Head
(3) Polished Mirror Head
(4) Conical Head
(5) Flat Head
(6) Pressure Vessel & Tank Head
(7) Pipe Caps
(8) Customization Accepted
5. Frequently Asked Questions(FAQ):
(1) Are you a factory or a trading company?
Henan Guojiang Precision Formed Head Company is a Professional Manufacturer of Dish Head in China, dedicated manufacturing facility specializing in the production of dish head (ellipsoidal, torispherical, hemispherical, and custom-formed heads) for industrial applications.
(2) Is your quality control system reliable?
100% traceability of dish head and for full raw materials(Steel Plates),Our production system operates under a structured quality management workflow with strict process control. Each manufacturing order is released only after technical review and process validation by the Production Technology Department.
All fabrication stages are governed by controlled process sheets (route cards), ensuring traceability and compliance at every step, including forming, heat treatment (if required), machining, and inspection. Batch-level quality control is implemented to ensure dimensional accuracy, surface integrity, and compliance with applicable technical specifications, including high-precision applications such as MRI and magnetic resonance equipment.
(3) Do you support customization?
Yes. We provide full customization services for non-standard and engineered dished heads. Production is carried out strictly according to client-supplied technical drawings, material specifications, design codes, and dimensional requirements. Engineering support is available for specification clarification prior to quotation and manufacturing.
(4) Do you strictly control delivery schedules?
Yes. Delivery control is integrated into our production planning system. Each order is assigned a defined manufacturing schedule based on process routing, material availability, and workload balancing.
Lead times are calculated prior to production release and are strictly managed through internal scheduling controls to ensure on-time delivery in accordance with confirmed production plans.
