316L Stainless Steel Brewing Tank Heads Manufacturer in China
1.Specifications of Brewing Tank Heads:

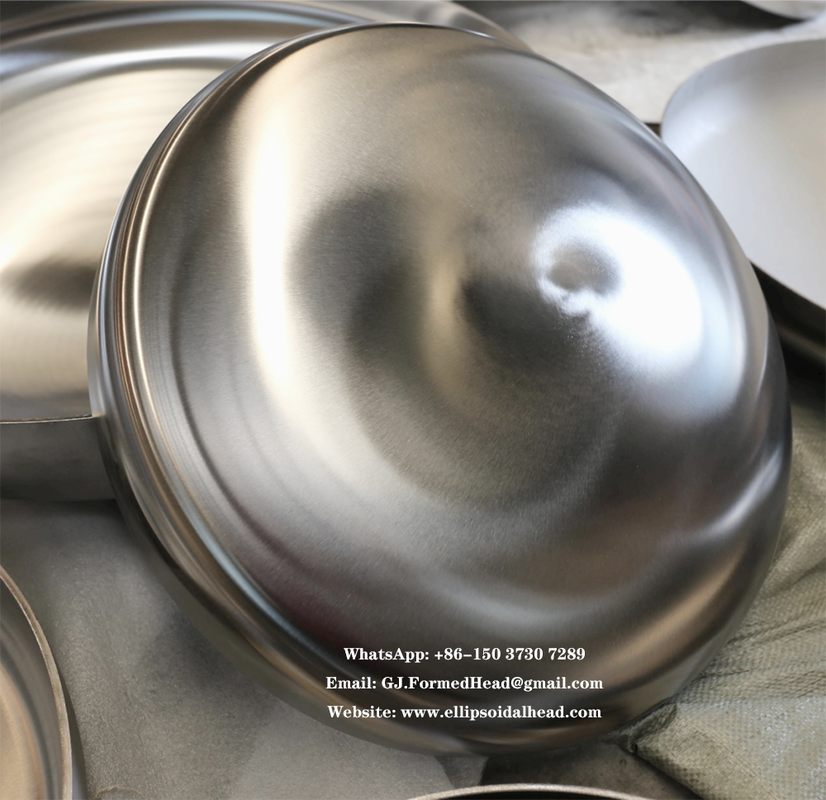

316L Stainless Steel Brewing Tank Heads with Sanitary Polishing, Manufactured by Henan Guojiang Precision Formed Head Co., Ltd.
A Professional Chinese Manufacturer Certified with ASME, ISO and PED. We Fabricate Stainless Steel Brewing Tank Heads to ASME, PED/EN, DIN, GB/T and Other Standards.
| Stainless Steel Brewing Tank Heads Specifications |
| Surface Polishing |
Various Surface Polishing, like Mirror Polishing, RA 0.4um, RA 0.8um.
As Per Customer Requests.
|
| Available Surface Treatments |
Pickling, Polishing, Mirror Polishing. Surface Finish can be Provided per Your Specifications. |
| Diameters |
from 76mm to 4000mm for Cold Forming. (Hot Forming with Larger Diameter Requirements) |
| Thickness |
from 2mm to 25mm for Cold Forming. (Hot Forming Available for Greater Thicknesses) |
| V-Groove |
VO, VI bevels with Root Face as your request. |
| Joggling Range |
Max Diameter 2.6 Meters; Max Thickness 10mm. |
| Laser Trimming |
Laser Edge Trimming & Laser Cutting for Holes Available. |
| Non-Destructive Testing (NDT) |
RT, PT, UT, MT |
2. Brewing Tank Heads Certificates:
316L Stainless Steel Brewing Tank Heads Manufactured by Henan Guojiang Precision Formed Head Co., Ltd.
We are a Factory Holding ISO, ASME & PED Certifications. Our Brewing Tank Heads can be Fabricated to Multiple Standards, Including ASME, PED/EN, DIN, GB/T and Others Requirements.
Tolerances Differ Under Various Manufacturing Standards. We can Also meet Custom Tolerance Specifications as Requested by Customers.
3. Brewing Tank Heads Quality Control:
(1). 316L Stainless Steel Brewing Tank Heads Manufactured by Henan Guojiang Precision Formed Head Co., Ltd. We Implement a Rigorous Quality Control System, Instruction Guidance Sheets are Applied at Every Manufacturing Stage, and Finished Heads Undergo Strict Final Inspection by our QC Department.
(2).Supported by Our Order Management System for Full Traceability. 100% Traceability Available for All 316L Stainless Steel Brewing Tank Heads Manufactured in our Factory.
(3). 100% Raw Material Traceability via Furnace Heat Number.
(4). Quality Certificates are Issued for Every Batch of 316L Stainless Steel Brewing Tank Heads. These Authentic Records include Furnace Heat Number, Factory Production Number for Traceability. Specification Data Report, and Dimensional Tolerances for Each Items: Diameter Tolerance, Roundness, Uniform Thickness, Crown Height, Overall Height, Surface Treatment, etc.
4. Brewing Tank Heads Applications:
316L Stainless Steel Brewing Tank Heads Manufactured by Henan Guojiang Precision Formed Head Co., Ltd. with Wide Applications, and Custome Order Accepted.
(1). Sanitary Applications: Food, Beverage, Brewing, Dairy Industry, Chemical, Cosmetic, Water Treatment, Wine, Mixing Tank, Pharmaceutical, Biotech, etc.
(2). Oil & Gas: Storage Tanks, Pressure Vessels, Separators, Heat Exchangers and other Process Equipment.
(3). Chemical Industry: Reaction Vessels, Storage Tanks, Distillation Columns, etc.
(4). Semi-Conductor Crystal Growth Furnace & Silicon Crystal Furnaces, etc.
(5). Power & Energy: Boiler Drums, Heat Exchangers, Pressure Tanks for Power Plants.
(6). Water Treatment: Pressure Tanks, Filter Vessels, RO Membrame Housings, etc.
5. Frequently Asked Questions (FAQ):
Q: What Materials are Used to Manufacture Stainless Steel Brewing Tank Heads?
A: We Mainly Manufacture Stainless Steel Brewing Tank Heads from SA-240M Stainless Steel (304/304L, 316/316L, 904L). Carbon Steel (SA-516 Gr.60/Gr.70), Duplex and Alloy Steel are Also Available on Request.
Q: Which Certifictions Does Your Factory Have?
A: Our factory is certified with ASME (U-Stamp), PED and ISO 9001. Every order is supplied with EN 10204 3.1 material certificates, and third-party inspection is available on request.
Q: What Manufacturing Standards do You Follows?
A: We Manufacturer Stainless Steel Brewing Tank Heads to ASME Boiler & Pressure Vessel Code (Section VIII) and PED, with Reference to DIN and GB/T Standards where Required. Our Quality System is Certified to ISO 9001, and Every Order is Supplied with Quality Certificates and EN 10204 3.1 Certificates.
Q: Do you Guarantee on-Time Delivery
A: Yes, Our Order Management System Controls Every Manufacturing Step, So We Confirm and Accurate Lead Time Before Order Placement and Strictly Follow It. On-Time Delivery is Reliable and Stable Across All Orders.
Q: Do you Provide ASME U-Stamp Certification?
A: Yes, U-Stamp is Available. It Requires an Authorized Third-Party (ASME) Inspector to Visit Our Factory for Review and Stampin, Which involves an Additional Fee and Longer Lead Time, Please Confirm this When Order Placement.
Q: Do you accept Custom Non-Standard Stainless Steel Tank Heads?
A: Yes, We can Manufacture Custom Non-Standard Stainless Steel Tank Heads Based on Your Detailed Specifications and Drawings.
Q: How to Get a Quotation?
A: Please Provide Drawing or, Dimension, Materials, Quantity, Standard, NDT & Surface Requirements.
