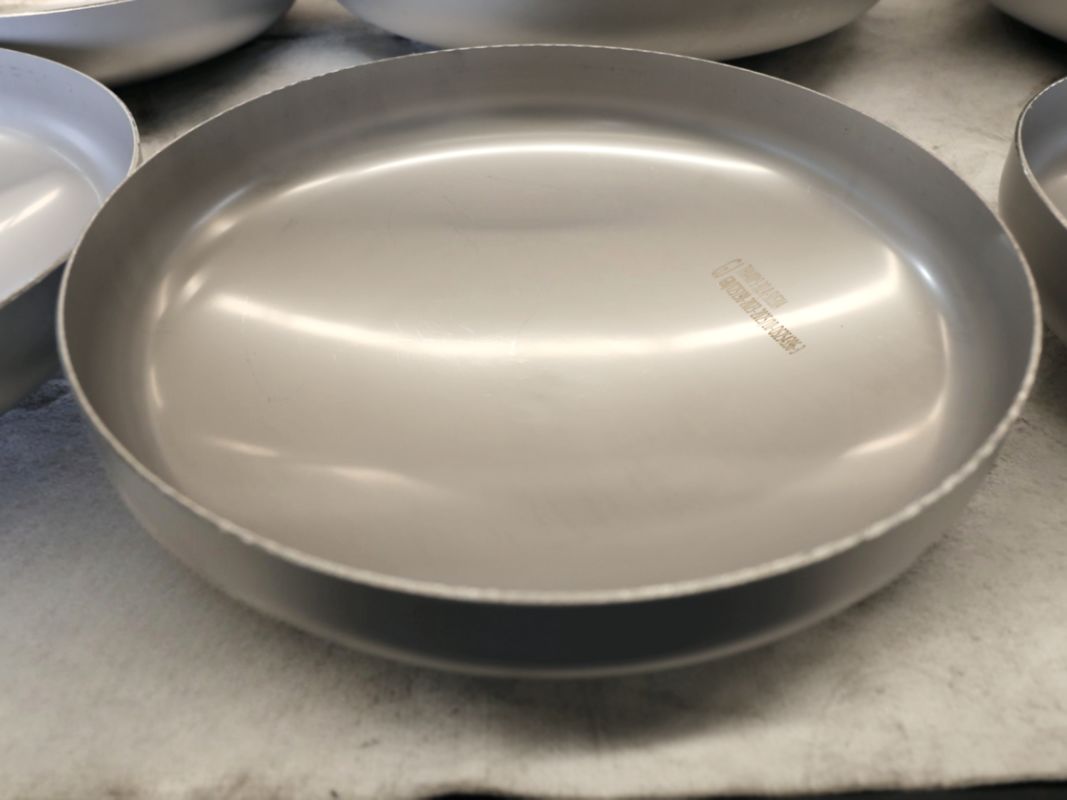

ASME Liquid Storage Tank 400mm ID & 3mm Thickness Torispherical Head

ASME Liquid Storage Tank 400mm ID & 3mm Thickness Torispherical Head
ASME Liquid Storage Tank 400mm ID & 3mm Thickness Torispherical Head

Large Image :  ASME Liquid Storage Tank 400mm ID & 3mm Thickness Torispherical Head

Product Details:
Place of Origin: Henan, China
Brand Name: GJ
Certification: ASME, PED, GB, ISO
Model Number: THA 400×3
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $25-10000
Packaging Details: Wooden cases, wooden pallets, steel pallets, or customized according to customer requirements
Delivery Time: 10-30 days
Payment Terms: T/T,L/C
Supply Ability: 50,000 pieces per month
Contact Now Chat Now

ASME Liquid Storage Tank 400mm ID & 3mm Thickness Torispherical Head

description
Diameter: 76mm - 10000mm Thickness: 1mm -300mm
RA: 0.1-0.8μm Customization: Customise Products According To The Drawings And The Requirements
Material: Aluminum, 304, 316, 321, 2205, Q235, A36, Q245R, Q345R, SA-516Gr.60/65/70, 16MnDR, S275JR Etc.. Downstream Aplications: Industrial Dewar Flask Heads,on-board Gas Cylinder Heads,quick-cooling Storage Tank Heads,on-board Storage Tank Heads,heads For Food And Medical Equipment, ,water Purification Filter Pipeline End Cap，and Heads For Magnetic Resonance Equipment.
Highlight:

ASME liquid storage tank 400mm ID

,

torispherical head 3mm thickness

,

ASME torispherical head storage tank

Product Specifications
Product Description Details
Brand Name GuoJiang
Product Model ASME Liquid Storage Tank Torispherical Head - 400mm ID & 3mm Thickness
Core Parameters Inner diameter 400mm (tolerance ≤±1mm), thickness 3mm (uniformity ≤0.5mm), suitable for working pressure 0.1MPa–100MPa
Material Options Stainless steel (SUS304, SUS316L, etc.), carbon steel (Q235B, Q345R, etc.) and other alloy materials available, all with complete Material Test Certificates (MTC)
Forming Process Cold forming (suitable for thin materials ≤20mm), supported by 1000-ton hydraulic presses for stable forming without thermal deformation
Surface Treatment Options include sand blasting (Ra1.6μm–3.2μm), pickling passivation (for stainless steel), food-grade anti-rust oil coating, and mirror polishing (Ra≤0.8μm) for hygiene-sensitive applications
Inspection Standards UT (100% coverage for key parts), PT (for non-ferrous materials), compliant with ASME BPVC Sec. V standards
Applicable Standards ASME BPVC Sec.VIII Div. 1/2, compatible with PED 2014/68/EU, GB/T 25198-2023 and other regional specifications
Certifications ISO 9001:2015 Quality Management System, ASME "U" Stamp Certification
Applications Widely used in food & pharmaceutical, ambient liquid storage tanks, new energy equipment and other fields requiring high precision and hygiene
Packaging Export-grade fumigated wooden cases (waterproof & shockproof) or vacuum packaging (for stainless steel heads) to ensure damage-free transportation
Customization Services Customizable surface treatment and inspection items as per drawings; free FEA pressure resistance simulation and 2D/3D drawing design; small-batch samples (5-10 pieces) available
After-Sales Service Customer inquiries are responded to within 48 hours, providing timely technical support for usage issues

Tag:

Torispherical Dished Head,

Stainless Steel Head,

Vessel Dish Head
