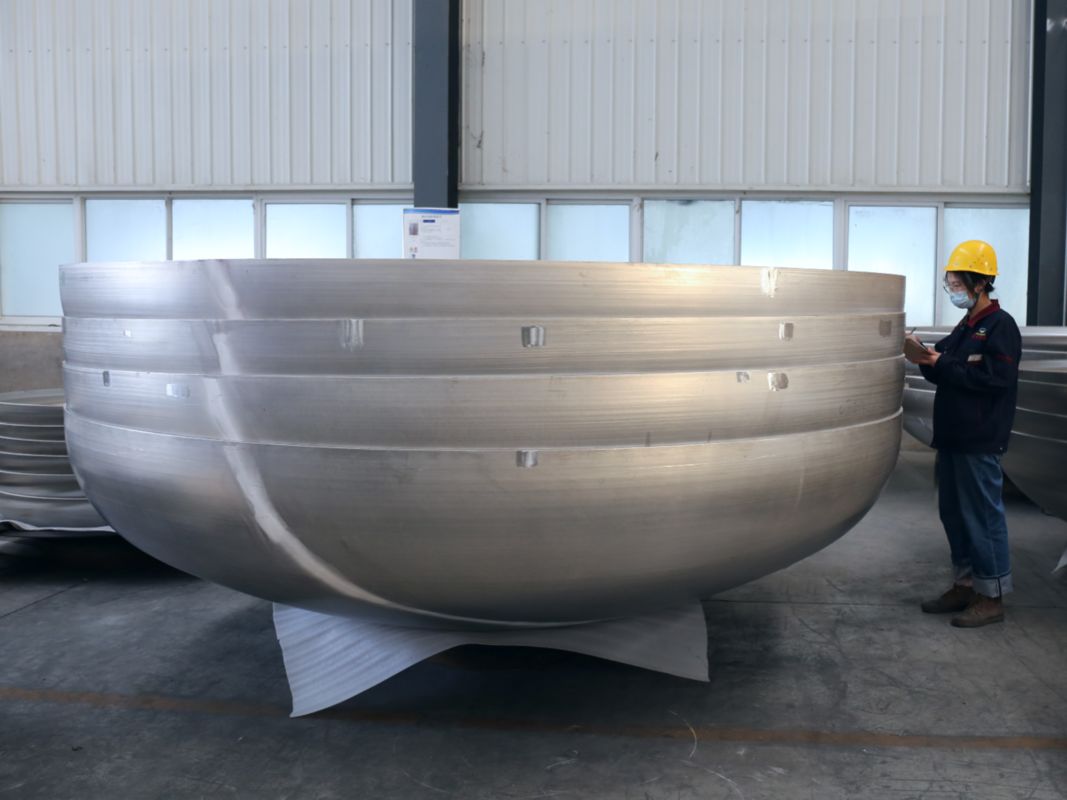

Ellipsoidal Head- 3300×9 S30408, Cold Pressing for Cryogenic Tanker

Ellipsoidal Head- 3300×9 S30408, Cold Pressing for Cryogenic Tanker
Ellipsoidal Head- 3300×9 S30408, Cold Pressing for Cryogenic Tanker

Large Image :  Ellipsoidal Head- 3300×9 S30408, Cold Pressing for Cryogenic Tanker

Product Details:
Place of Origin: Henan, China
Brand Name: Guojiang
Certification: ASME, PED, GB, ISO
Model Number: EHA 3300×9
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $25-10000
Packaging Details: Wooden cases, wooden pallets, steel pallets, or customized according to customer requirements
Delivery Time: 10-30 days
Payment Terms: T/T,L/C
Supply Ability: 50,000 pieces per month
Contact Now Chat Now

Ellipsoidal Head- 3300×9 S30408, Cold Pressing for Cryogenic Tanker

description
Brand: Guojiang Forming Process: Cold Pressing
Diameter: 76mm - 10000mm Thickness: 1mm -300mm
Customization: Customise Products According To The Drawings And The Requirements Material: Aluminum, 304, 316, 321, 2205, Q235, A36, Q245R, Q345R, SA-516Gr.60/65/70, 16MnDR, S275JR Etc..

Ellipsoidal Head- 3300×9 S30408, Cold Pressing for Cryogenic Tanker
Product Overview
This ellipsoidal head (specification 3300*9, material S30408) is a core pressure-bearing and sealing component for cryogenic tanker tanks, manufactured via the cold pressing process. Its standard ellipsoidal structure (major-to-minor axis ratio 2:1) with a straight edge optimises the flow path of low-temperature media, reduces fluid stagnation in the tank, and adapts to the harsh working conditions of cryogenic tankers from -40℃ to normal temperature.
Produced by Henan Guojiang Precision Formed Head Co., Ltd., which has over 12 years of experience in precision head manufacturing, the product quality is recognised by enterprises in more than 10 countries worldwide, and it is specially designed for the safe and efficient operation of cryogenic tankers.
Key Specifications
Brand Name GuoJiang
Specific Specification Inner Diameter 3300mm, Thickness 9mm
Material S30408 Stainless Steel (Low-Temperature Corrosion Resistance)
Reduction Ratio Approximately 10%
Surface Treatment Sand Blasting, Pickling
Inspection Methods UT, MT, PT (Ultrasonic, Magnetic Particle, Penetrant Testing)
Applicable Standards GB/T 25198-2023, ASME
Packaging Methods Wooden Cases, Wooden Pallets, Steel Pallets, or Customised
Practical Applications
  • Core Sealing for Cryogenic Tankers: As the tank end-sealing component for cryogenic tankers with a volume of 20-35 cubic meters, it is used for long-distance transportation of low-temperature media such as liquefied natural gas (LNG), liquid nitrogen, and liquid carbon dioxide. It ensures the tightness of the medium in the tank and reduces volatilisation loss.
  • Adaptation to Related Industries: Compatible with low-temperature transportation needs in the energy and chemical industries, it can be accurately connected with tanker anti-wave plates and low-temperature valves to improve the overall pressure-bearing performance and operational safety of the tanker, adapting to scenarios such as low-temperature logistics and chemical raw material transportation.
Customization & Assurance
  • Customisation Service: Customised ellipsoidal head sizes and surface treatment solutions are available according to the specific volume and medium type of the cryogenic tanker.
  • Quality Assurance: Full-process quality traceability, with strict control over each link from S30408 raw material cutting, cold pressing forming to finished product inspection; each product is accompanied by a quality report to ensure compliance with the long-term safe operation requirements of cryogenic tankers.

Tag:

Pressure Vessel Heads,

Ellipsoidal Dished Head,

Ellipsoidal Dish Head
