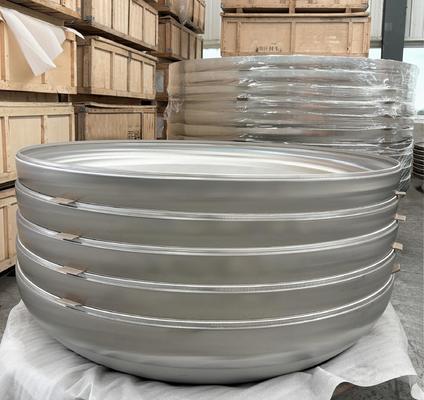

ASME 316L Stainless Steel Ellipsoidal Dished Head with Reduced Opening for Corrosion Resistant Tank Applications

ASME 316L Stainless Steel Ellipsoidal Dished Head with Reduced Opening for Corrosion Resistant Tank Applications
ASME 316L Stainless Steel Ellipsoidal Dished Head with Reduced Opening for Corrosion Resistant Tank Applications

Large Image :  ASME 316L Stainless Steel Ellipsoidal Dished Head with Reduced Opening for Corrosion Resistant Tank Applications

Product Details:
Place of Origin: Henan, China
Brand Name: GJ
Certification: ASME, PED, GB, ISO
Model Number: EHA 1700x6
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $25-10000
Packaging Details: Wooden cases, wooden pallets, steel pallets, or customized according to customer requirements
Delivery Time: 10-30 days
Payment Terms: T/T,L/C
Supply Ability: 50,000 pieces per month
Contact Now Chat Now

ASME 316L Stainless Steel Ellipsoidal Dished Head with Reduced Opening for Corrosion Resistant Tank Applications

description
Diameter: 76mm - 10000mm Thickness: 1mm -300mm
Roughness: RA 0.1-0.8μm Forming Method: Hot Forming;Cold Forming
Customization: Customise Products According To The Drawings And The Requirements Material: Aluminum, 304, 316, 321, 2205, Q235, A36, Q245R, Q345R, SA-516Gr.60/65/70, 16MnDR, S275JR Etc..
Highlight:

ASME 316L Stainless Steel Ellipsoidal Dished Head

,

Reduced Opening Tank Head

,

Corrosion Resistant Dished Tank Head

Ellipsoidal Dished Head with Reduced Opening ASME 316L Stainless Steel Tank Head
2:1 Elliptical Dished Head with Reduced Opening ASME 316L Stainless Steel Tank Head (EHA 1700*6). Henan Guojiang Precision Formed Head Co., Ltd. brings over 12 years of expertise in pressure vessel components, earning a strong industry reputation. Enterprises trust our dished tank heads in more than 10 countries worldwide.
Core Parameters
  • Model Specification: ASME Standard 316L Stainless Steel Ellipsoidal Dished Head with Reduced Opening (for Tanks), featuring high strength and strong corrosion resistance, suitable for medium and large-sized pressure-bearing equipment.
  • Dimension Details: Standard inner diameter customizable on demand; reduced opening size supports 80mm-250mm personalised adjustment, compatible with medium and large storage tanks and pressure vessels in chemical, new energy and other fields.
  • Thickness Specification: Nominal thickness customizable (starting from 6mm as standard), optimising load-bearing design while ensuring structural stability, applicable for working pressures of 0.2MPa-12MPa.
Material Selection
  • Core Material: 316L stainless steel, with strong acid and alkali corrosion resistance, suitable for complex medium working conditions.
  • Optional Materials: Carbon steel (Q235B, Q345R) and duplex steel (S31803) available for customisation to meet diverse scenario needs.
Core Advantages
  • Superior Corrosion Resistance: A dense oxide film forms on the surface, resisting erosion from the atmosphere, acid and alkali media, and extending service life.
  • Integrated Reduced Opening Design: Eliminates secondary welding of pipe connections, reduces leakage risk, and cuts costs of connectors such as gaskets, bolts and flanges.
  • Welding Cost Saving: Significantly reduces welding workload, lowering construction cycle and labour costs.

Tag:

Elliptical Dish Head,

Tank Dished Ends,

Elliptical Tank Heads
