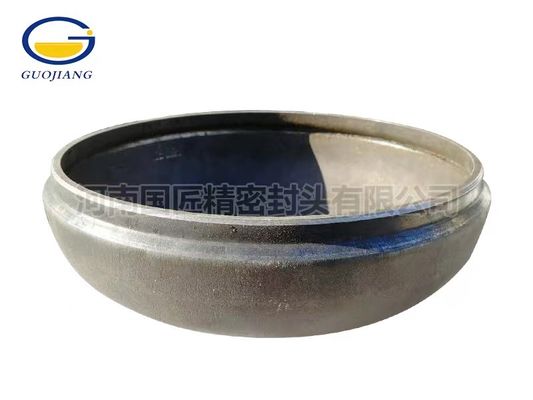

Q245R Dished Tank Head with 400mm Diameter and 5mm Thickness for Chemical Industry ISO 9001:2015 Certified

Q245R Dished Tank Head with 400mm Diameter and 5mm Thickness for Chemical Industry ISO 9001:2015 Certified
Q245R Dished Tank Head with 400mm Diameter and 5mm Thickness for Chemical Industry ISO 9001:2015 Certified

Large Image :  Q245R Dished Tank Head with 400mm Diameter and 5mm Thickness for Chemical Industry ISO 9001:2015 Certified

Product Details:
Place of Origin: Henan, China
Brand Name: GJ
Certification: ASME, PED, GB, ISO
Model Number: EHA 400×5
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $25-10000
Packaging Details: Wooden cases, wooden pallets, steel pallets, or customized according to customer requirements
Delivery Time: 10-30 days
Payment Terms: T/T,L/C
Supply Ability: 50,000 pieces per month
Contact Now Chat Now

Q245R Dished Tank Head with 400mm Diameter and 5mm Thickness for Chemical Industry ISO 9001:2015 Certified

description
Brand Name: Guojiang Diameter: 76mm - 10000mm
Thickness: 1mm -300mm Forming Method: Cold Forming;Hot Forming
Customization: Customise Products According To The Drawings And The Requirements Material: Aluminum, 304, 316, 321, 2205, Q235, A36, Q245R, Q345R, SA-516Gr.60/65/70, 16MnDR, S275JR Etc..
Highlight:

400mm Diameter Dished Tank Head

,

5mm Thickness Tank Head

,

ISO 9001:2015 Pressure Vessel Head

Q245R Dished Tank Head with Reduced Opening (400mm Diameter, 5mm Thickness)
Product Specifications
Model Specification Dished Tank Head with Reduced Opening (Q245R), 400mm Diameter, 5mm Thickness
Dimension Details Inner diameter 400mm; customizable reduced opening (80mm-250mm)
Thickness & Pressure Nominal thickness 5mm; working pressure 0.2MPa-12MPa
Core Advantages
  • Structural Design: Integrated reduced opening, no secondary welding, lower leakage risk & connector costs
  • Structural Performance: 2:1 elliptical shape, even pressure distribution, high pressure resistance, smooth structure transition
  • Material Guarantee: Q245R carbon steel; certified suppliers with complete MTC
  • Adaptability: Suitable for small/medium pressure-bearing equipment in chemical, new energy fields
Applications & Certifications
Certifications ISO 9001:2015, ASME "U" Stamp, PED
Application Scenarios Small/medium storage tanks, pressure vessels in chemical, new energy industries

Tag:

Elliptical Dish Head,

Tank Dished Ends,

Elliptical Tank Heads
