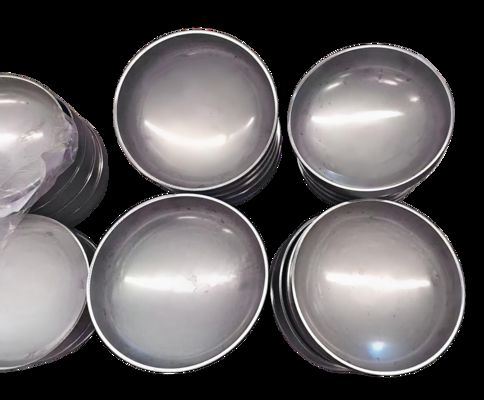

316L Stainless Steel Pipe End Cap with 219mm Diameter and 4mm Thickness for Pressure Vessels

316L Stainless Steel Pipe End Cap with 219mm Diameter and 4mm Thickness for Pressure Vessels
316L Stainless Steel Pipe End Cap with 219mm Diameter and 4mm Thickness for Pressure Vessels

Large Image :  316L Stainless Steel Pipe End Cap with 219mm Diameter and 4mm Thickness for Pressure Vessels

Product Details:
Place of Origin: Henan, China
Brand Name: GJ
Certification: ASME, PED, GB, ISO
Model Number: EHB 219×4
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $25-10000
Packaging Details: Wooden cases, wooden pallets, steel pallets, or customized according to customer requirements
Delivery Time: 10-30 days
Payment Terms: T/T,L/C
Supply Ability: 50,000 pieces per month
Contact Now Chat Now

316L Stainless Steel Pipe End Cap with 219mm Diameter and 4mm Thickness for Pressure Vessels

description
Thickness: 1mm -300mm Pressure Range: 0.1MPa-12MPa
Diameter: 76mm - 10000mm Processing Methods: Hot Forming，Cold Forming
Material: Aluminum, 304, 316, 321, 2205, Q235, A36, Q245R, Q345R, SA-516Gr.60/65/70, 16MnDR, S275JR Etc.. Customization: Customise Products According To The Drawings And The Requirements
Highlight:

316L Pipe End Cap

,

219mm Diameter Pipe End Cap

,

4mm Thickness Pipe End Cap

316L Stainless Steel Pipe End Cap - 219mm Diameter, 4mm Thickness
Lightweight, corrosion-resistant end cap designed for industrial pipeline systems and pressure vessels with medium-caliber pipes.
Product Overview
The 316L Pipe End Cap features a 219mm inner diameter and 4mm thickness, offering superior corrosion resistance and lightweight performance for demanding industrial applications.
Key Specifications
Inner Diameter 219mm
Thickness 4mm
Pressure Range 0.1MPa-12MPa
Material Stainless Steel 316L (with complete Material Test Certificate - MTC)
Performance Features
  • 30%-50% lighter than traditional steel end caps while maintaining structural stability
  • Precise dimensional control with ±1mm diameter tolerance and ±0.5mm concentricity
  • Leak-proof integrated design, eliminating the need for secondary welding
  • Natural oxide film resists corrosion from atmospheric conditions, weak acids and alkalis
Manufacturing & Surface Treatment
  • Forming Process: Cold forming with 800-ton hydraulic presses (hot forming at 350℃-500℃ for thick-walled applications)
  • Optional Surface Treatments:
    • Chemical polishing (Ra ≤ 1.6μm)
    • Anodising (customizable colours)
    • Passivation treatment
    • Anti-rust coating
    • Mirror polishing (Ra ≤ 0.8μm)
    • Sandblasting (Ra 1.6μm-3.2μm)
Quality Assurance
  • 100% ultrasonic testing and liquid penetrant testing
  • Dimensional verification and pressure test at 1.5* rated pressure
  • Certified with:
    • ASME BPVC Sec.VIII Div.1
    • PED 2014/68/EU
    • GB/T 25198-2010
    • ASME "U" Stamp
    • PED Module H certification
Applications
  • Food & Beverage: Juice, dairy and edible oil conveying pipelines
  • Chemical Industry: Solvent transportation and reactor connection pipelines
  • New Energy: Battery electrolyte and hydrogen energy equipment supporting
  • Water Treatment: Pressure filters and storage pipeline systems
  • Pharmaceutical: Medicinal liquid and intermediate conveying pipelines
Packaging & Services
  • Packaging Options:
    • Waterproof wooden cases
    • Pallet packaging (12-15 pieces/pallet)
    • Vacuum packaging
  • Customisation: Adjustable diameter, thickness and opening size
  • Sample Service: 3-5 samples provided for test evaluation
  • Lead Time: 20 days for standard orders, 30 days for custom orders

Tag:

Pipeline End Cap,

Pressure Vessel End Cap,

S30408 Pipe End Cap
