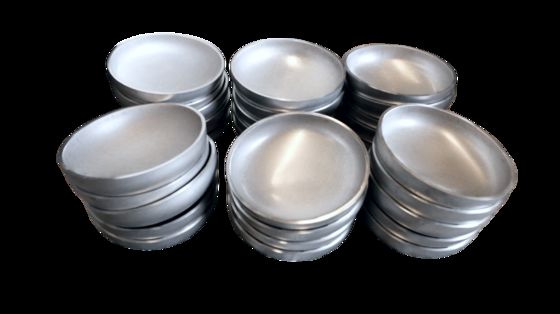

3mm 108mm SUS304 Stainless Steel Pipe End Cap for Industrial Pressure Vessel Applications

3mm 108mm SUS304 Stainless Steel Pipe End Cap for Industrial Pressure Vessel Applications
3mm 108mm SUS304 Stainless Steel Pipe End Cap for Industrial Pressure Vessel Applications

Large Image :  3mm 108mm SUS304 Stainless Steel Pipe End Cap for Industrial Pressure Vessel Applications

Product Details:
Place of Origin: Henan, China
Brand Name: GJ
Certification: ASME, PED, GB, ISO
Model Number: EHB 108×3
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $25-10000
Packaging Details: Wooden cases, wooden pallets, steel pallets, or customized according to customer requirements
Delivery Time: 10-30 days
Payment Terms: T/T,L/C
Supply Ability: 50,000 pieces per month
Contact Now Chat Now

3mm 108mm SUS304 Stainless Steel Pipe End Cap for Industrial Pressure Vessel Applications

description
Thickness: 1mm -300mm Pressure Range: 0.1MPa-12MPa
Diameter: 76mm - 10000mm Processing Methods: Hot Forming，Cold Forming
Customization: Customise Products According To The Drawings And The Requirements Material: Aluminum, 304, 316, 321, 2205, Q235, A36, Q245R, Q345R, SA-516Gr.60/65/70, 16MnDR, S275JR Etc..
Highlight:

3mm Thickness Pipe End Cap

,

108mm Inner Diameter Pressure Vessel End Cap

,

SUS304 Stainless Steel Pipeline End Cap

3mm 108mm SUS304 Pipe End Cap for Industrial Pipe Applications
The SUS304 Pressure Vessel Pipe End Cap, with an inner diameter of 108mm and thickness of 3mm, is designed for medium-caliber pipes in industrial pipeline systems and pressure vessels. Its lightweight construction and stable protective performance meet sealing requirements across multiple industries.
Key Specifications
Inner Diameter 108mm
Thickness 3mm
Pressure Range 0.1MPa-12MPa
Material SUS304 Stainless Steel (with complete Material Test Certificate - MTC)
Performance Features
  • Lightweight Design: 30%-50% lighter than traditional steel end caps without compromising structural stability
  • High Dimensional Precision: Diameter tolerance within ±1mm, concentricity error ≤±0.5mm
  • Leak-Proof Structure: Integrally formed with no secondary welding required, eliminating leakage risks
  • Corrosion Resistance: Natural oxide film resists atmospheric conditions, weak acids and weak alkalis
Manufacturing & Surface Treatment
  • Forming Process: Cold forming with 800-ton hydraulic presses; hot forming at 350℃-500℃ available for thick-walled requirements
  • Surface Treatment Options: Chemical polishing (Ra ≤ 1.6μm), anodising with customizable colors, passivation treatment, anti-rust coating, mirror polishing (Ra ≤ 0.8μm), sandblasting (Ra 1.6μm-3.2μm)
Quality Assurance
  • 100% ultrasonic testing and liquid penetrant testing to eliminate defects
  • Strict dimensional verification and pressure test at 1.5× rated pressure
  • Certified to ASME BPVC Sec.VIII Div.1, PED 2014/68/EU, GB/T 25198-2010 with ASME "U" Stamp and PED Module H certification
Applications
  • Food & Beverage: End sealing of juice, dairy and edible oil conveying pipelines
  • Chemical Industry: Protective plugging of solvent conveying pipelines and reactor connection ends
  • New Energy: Sealing of battery electrolyte conveying pipelines and hydrogen energy equipment
  • Water Treatment: End protection of pressure filters and storage pipelines
  • Pharmaceutical: Sealing application of medicinal liquid and intermediate conveying pipelines
Packaging & Services
  • Packaging Options: Waterproof wooden cases, pallet packaging (12-15 pieces/pallet), vacuum packaging
  • Customisation: Adjustable diameter, thickness and opening size
  • Sample Support: 3-5 samples provided for test evaluation
  • Lead Time: 20 days for standard orders, 30 days for custom orders

Tag:

Pipeline End Cap,

Pressure Vessel End Cap,

S30408 Pipe End Cap
