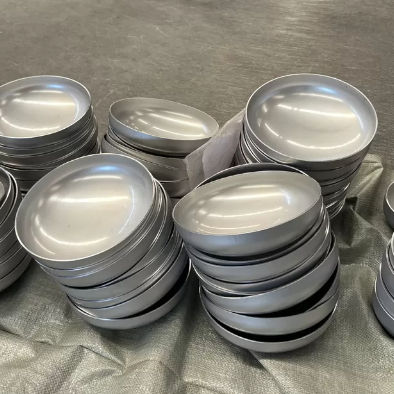

S30408 Pipe End Cap 159mm Diameter Lightweight Pressure Vessel End Cap Corrosion Resistant

S30408 Pipe End Cap 159mm Diameter Lightweight Pressure Vessel End Cap Corrosion Resistant
S30408 Pipe End Cap 159mm Diameter Lightweight Pressure Vessel End Cap Corrosion Resistant

Large Image :  S30408 Pipe End Cap 159mm Diameter Lightweight Pressure Vessel End Cap Corrosion Resistant

Product Details:
Place of Origin: Henan, China
Brand Name: GJ
Certification: ASME, PED, GB, ISO
Model Number: EHB 159x6
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $25-10000
Packaging Details: Wooden cases, wooden pallets, steel pallets, or customized according to customer requirements
Delivery Time: 10-30 days
Payment Terms: T/T,L/C
Supply Ability: 50,000 pieces per month
Contact Now Chat Now

S30408 Pipe End Cap 159mm Diameter Lightweight Pressure Vessel End Cap Corrosion Resistant

description
Material: Aluminum, 304, 316, 321, 2205, Q235, A36, Q245R, Q345R, SA-516Gr.60/65/70, 16MnDR, S275JR Etc.. Inner Diameter: 159mm
Thickness: 1mm -300mm Pressure Range: 0.1MPa-12MPa
Diameter: 76mm - 10000mm Customization: Customise Products According To The Drawings And The Requirements
Highlight:

S30408 Pipe End Cap

,

Pipe End Cap 159mm

,

Lightweight Pressure Vessel End Cap

S30408 EHB Pipe End Cap with 159mm Diameter and 6mm Thickness for Pressure Vessels
Product Overview
The S30408 EHB Pipe End Cap features a 159mm inner diameter and 6mm thickness, designed specifically for medium-caliber pipes in industrial pipeline systems and pressure vessel applications.
Key Specifications
  • Model: EHB159*6
  • Inner Diameter: 159mm
  • Thickness: 6mm
  • Pressure Range: 0.1MPa-12MPa
Material Options
  • Aluminum Alloys: 6061 (high strength, excellent weldability) and 5052 (superior corrosion resistance)
  • Custom Materials: Carbon steel (Q235B, Q345R), Stainless steel (SUS304, SUS316L), Duplex steel (S31803)
  • All materials include complete Material Test Certificates (MTC)
Performance Features
  • 30%-50% lighter than steel equivalents while maintaining structural stability
  • Precision dimensional control (±1mm diameter tolerance, ±0.5mm concentricity)
  • Leak-proof integrated design eliminates need for secondary welding
  • Natural oxide film provides corrosion resistance against atmospheric conditions, weak acids and alkalis
Manufacturing Process
Forming methods include cold forming with 800-ton hydraulic presses or hot forming (350℃-500℃) for thick-walled applications.
Surface Treatment Options
  • Chemical polishing (Ra ≤ 1.6μm)
  • Anodizing (color customization available)
  • Passivation treatment
  • Anti-rust coating
  • Mirror polishing (Ra ≤ 0.8μm) or sandblasting (Ra 1.6μm-3.2μm)
Quality Assurance
  • 100% ultrasonic and liquid penetrant testing
  • Dimensional verification and pressure tests (1.5× rated pressure)
  • Certifications: ASME BPVC Sec.VIII Div.1, PED 2014/68/EU, GB/T 25198-2010, JIS B8243, ISO 9001:2015
  • ASME "U" Stamp and PED Module H certified
Applications
  • Food & Beverage: Juice, dairy and edible oil pipelines
  • Chemical Industry: Solvent conveying and reactor connections
  • New Energy: Battery electrolyte and hydrogen energy equipment
  • Water Treatment: Pressure filters and storage pipelines
  • Pharmaceutical: Medicinal liquids and intermediates pipelines
Packaging & Services
  • Packaging Options: Waterproof wooden cases, pallet packaging (12-15 pieces/pallet), vacuum packaging
  • Customization: Diameter, thickness, opening size modifications available
  • Samples: 3-5 samples provided for evaluation
  • Lead Time: Standard delivery in 20 days, custom orders in 30 days

Tag:

Pipeline End Cap,

Pressure Vessel End Cap,

S30408 Pipe End Cap
