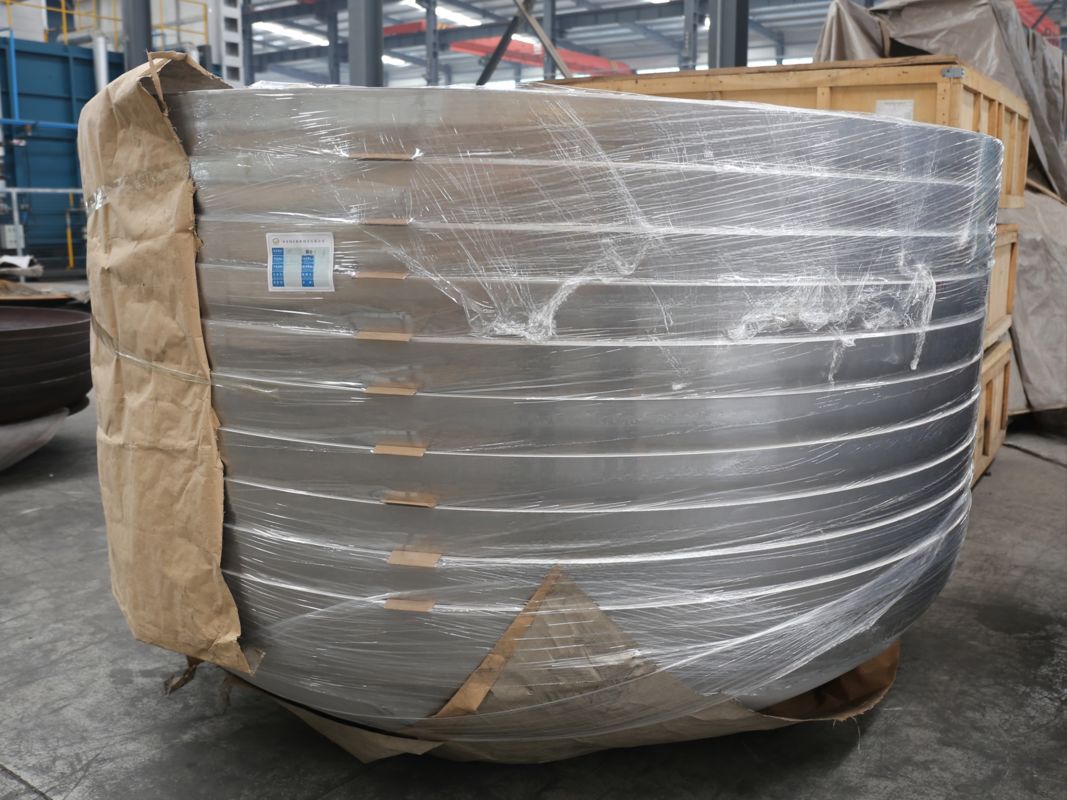

2500x8 Precision Engineered Corrosion-Resistant Elliptical Stainless Steel Head

2500x8 Precision Engineered Corrosion-Resistant Elliptical Stainless Steel Head
2500x8 Precision Engineered Corrosion-Resistant Elliptical Stainless Steel Head

Large Image :  2500x8 Precision Engineered Corrosion-Resistant Elliptical Stainless Steel Head

Product Details:
Place of Origin: Henan, China
Brand Name: GJ
Certification: ASME, PED, GB, ISO
Model Number: EHA 2500×8
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $25-10000
Packaging Details: Wooden cases, wooden pallets, steel pallets, or customized according to customer requirements
Delivery Time: 10-30 days
Payment Terms: T/T,L/C
Supply Ability: 50,000 pieces per month
Contact Now Chat Now

2500x8 Precision Engineered Corrosion-Resistant Elliptical Stainless Steel Head

description
Diameter: 76mm - 10000mm Thickness: 1mm -300mm
RA: 0.1-0.8μm Customization: Customise Products According To The Drawings And The Requirements
Material: Aluminum, 304, 316, 321, 2205, Q235, A36, Q245R, Q345R, SA-516Gr.60/65/70, 16MnDR, S275JR Etc.. Downstream Aplications: Industrial Dewar Flask Heads,on-board Gas Cylinder Heads,quick-cooling Storage Tank Heads,on-board Storage Tank Heads,heads For Food And Medical Equipment, ,water Purification Filter Pipeline End Cap，and Heads For Magnetic Resonance Equipment.
Highlight:

Necked Stainless Steel Head

,

Elliptical Stainless Steel Head

,

S304 Elliptical Head

2500*8 316L Elliptical Stainless Steel Head Precision Engineered
The EHA 2500*8 Elliptical Stainless Steel Head is produced in accordance with SA-240M 316, with an inner diameter of 2500 mm and a thickness of 8 mm. Constructed from low-carbon, molybdenum-containing 316L stainless steel, it offers exceptional chloride-ion corrosion resistance. The necked structure ensures tight connections with vessel cylinders, meeting sealing and pressure requirements for medium-low pressure applications in demanding industries.
Technical Specifications
Brand Name GuoJiang
Diameter Range 80mm - 10000mm
Thickness Range 2mm - 300mm
Reduction Ratio About 10%
Material Options
  • Carbon Steel (Q235B, Q345R, SA516 Gr.60/70)
  • Stainless Steel (316L, 304, SUS304, SUS316L, SUS321)
  • Duplex/Super Duplex (S31803, S32750)
  • Nickel & Nickel Alloys (Inconel 600, Hastelloy C276)
  • Copper & Copper Alloys (T2, H62)
  • Titanium & Its Alloys (Gr.2, Gr.5)
  • Zirconium & Cladded Materials
  • Aluminium (6061, 5052)
Key Features
  • Precision-engineered: 2500mm diameter optimised for standard tank/reactor specifications
  • Optimal thickness: 8mm nominal wall thickness calibrated for pressure requirements
  • Enhanced corrosion resistance: Molybdenum content provides superior protection against chloride ions, acids, and alkalis
  • Cleanable design: Minimal medium residue for easy maintenance
  • Efficient flow: Reduced fluid resistance improves equipment performance
Manufacturing Processes
Forming Methods:
  • Hot Forming: For thick materials (≥20mm) or high-strength alloys with controlled heating temperatures
  • Cold Forming: For thin materials (≤20mm) and stainless steel, preserving surface finish
Surface Treatment:
  • Sand Blasting (Ra 1.6μm - 3.2μm)
  • Pickling for passivation film formation
  • Oil Coating (food-grade optional)
  • Mechanical/Chemical Descaling
  • Custom surface finishes available (including mirror polishing Ra≤0.8μm)
Quality Assurance
Inspection Standards: PT/RT/UT/MT/TOFD
Certifications:
  • ISO 9001:201
  • ASME "U" Stamp
  • PED Module H Certificate
Applications
  • Petrochemical: Sulfur-containing medium storage tanks, offshore platform pressure vessels
  • Marine Engineering: Seawater treatment equipment, offshore liquid storage tanks
  • Food & Pharmaceutical: High-purity liquid medicine tanks, aseptic storage tanks
  • New Energy: Hydrogen storage tanks, lithium battery electrolyte reaction equipment
Packaging Options
  • Wooden Cases (waterproof, shockproof)
  • Wooden Pallets (stackable, ≥1000kg capacity)
  • Steel Pallets (for heavy heads ≥500kg)
  • Custom packaging solutions available
Customized Services
  • Full customisation of size, material, forming method, and surface treatment
  • Technical support, including FEA simulation and 2D/3D drawing design
  • Sample service available (5-10 pieces)
  • Quick turnaround: 20 days for standard heads, 30 days for custom orders
