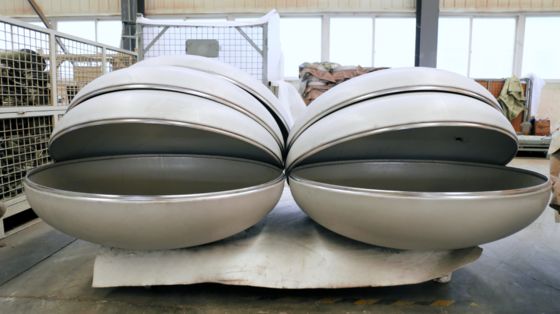

2:1 Elliptical Dished Head with Reduced Opening ISO 9001 Certified Stainless Steel Tank Head

2:1 Elliptical Dished Head with Reduced Opening ISO 9001 Certified Stainless Steel Tank Head
2:1 Elliptical Dished Head with Reduced Opening ISO 9001 Certified Stainless Steel Tank Head

Large Image :  2:1 Elliptical Dished Head with Reduced Opening ISO 9001 Certified Stainless Steel Tank Head

Product Details:
Place of Origin: Henan, China
Brand Name: GJ
Certification: ASME, PED, GB, ISO
Model Number: EHA 600x5
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $25-10000
Packaging Details: Wooden cases, wooden pallets, steel pallets, or customized according to customer requirements
Delivery Time: 10-30 days
Payment Terms: T/T,L/C
Supply Ability: 50,000 pieces per month
Contact Now Chat Now

2:1 Elliptical Dished Head with Reduced Opening ISO 9001 Certified Stainless Steel Tank Head

description
Material: Aluminum, 304, 316, 321, 2205, Q235, A36, Q245R, Q345R, SA-516Gr.60/65/70, 16MnDR, S275JR Etc.. Diameter: 76mm - 10000mm
Thickness: 1mm -300mm Customization: Customise Products According To The Drawings And The Requirements
Downstream Aplications: Industrial Dewar Flask Heads,on-board Gas Cylinder Heads,quick-cooling Storage Tank Heads,on-board Storage Tank Heads,heads For Food And Medical Equipment, ,water Purification Filter Pipeline End Cap，and Heads For Magnetic Resonance Equipment. Roughness: RA 0.1-0.8μm
Forming Method: Hot Forming;Cold Forming
Highlight:

Dished Tank Heads Stainless Steel

,

Elliptical Dished Tank Heads

,

2:1 Elliptical Tank Heads

2:1 Elliptical Dished Tank Heads With Reduced Opening Stainless Steel
2:1 Stainless Steel Elliptical Dished Head with Reduced Opening (1050*6)
Basic Product Information
Core Parameters
  • Model Specification: Stainless Steel Elliptical Dished Head with Reduced Opening EHA1050*6 (SUS304/SUS316L), featuring high strength and corrosion resistance, suitable for medium and large pressure-bearing equipment.
  • Dimension Details: Standard inner diameter 1050mm, compatible with medium and large storage tanks and pressure vessels in chemical, new energy and other fields; the size of the reduced opening can be customised (ranging from 80mm to 250mm).
  • Thickness Specification: Nominal thickness 6mm, optimising load-bearing while ensuring structural stability, suitable for working pressures of 0.2MPa-12MPa.
Material Selection
  • Mainstream stainless steel materials: SUS304 (versatile, corrosion-resistant), SUS316L (resistant to strong acids and alkalis).
  • Customizable optional materials: Carbon steel (Q235B, Q345R), duplex steel (S31803).
  • All stainless steel materials are sourced from certified suppliers with complete Material Test Certificates (MTC).
Core Product Advantages
  • Excellent Corrosion Resistance: The dense oxide film on the stainless steel surface can resist corrosion from the atmosphere, acid and alkali media.
  • Integrated Reduced Opening Design: Eliminates the need for secondary welding of pipe connections, reducing the risk of leakage.
  • High Strength and Stability: The elliptical structural design evenly disperses internal pressure, enhancing overall pressure resistance.
Forming and Surface Treatment
Forming Process
  • Cold Forming: Preferred for 6 mm-thick stainless steel plates, maintaining original mechanical properties.
  • Hot Forming: For stainless steel with a thickness of≥12mm or high-strength alloys, with heating temperature controlled at 850℃-1050℃.
Surface Treatment
  • Chemical Polishing: Achieves a surface roughness of Ra ≤ 1.6μm, reducing medium adhesion.
  • Electrolytic Polishing: Creates a mirror effect (Ra ≤ 0.8μm), improving surface finish.
  • Passivation Treatment: Strengthens the surface oxide film, enhancing resistance to harsh media.
Inspection Standards
  • Ultrasonic Testing (UT): 100% coverage to detect internal inclusions and defects.
  • Penetrant Testing (PT): Detects surface and near-surface cracks and pinholes.
  • Dimensional Inspection: Verifies key parameters using high-precision measuring equipment.
  • Pressure Testing: Sampling pressure tests of 1.5 times the rated pressure.
Certifications and Application Scenarios
Applicable Standards and Certifications
  • ISO 9001:2015 Quality Management System Certification
  • ASME "U" Stamp Certification
  • PED Module H Certification
Application Fields
  • Food and Beverage: Medium and large storage tanks for juices, dairy products and edible oils.
  • Chemical Industry: Medium and low-pressure reactors, solvent storage tanks.
  • New Energy Field: Lithium battery electrolyte storage tanks, hydrogen energy equipment.
  • Pharmaceutical Industry: Sanitary storage tanks for medicinal liquids.
Packaging and Services
Packaging Solutions
  • Wooden Case Packaging: Waterproof, shockproof and fumigated, meeting international export standards.
  • Wooden Pallet Packaging: Each pallet can load 5-8 heads for bulk orders.
  • Customised Packaging: Vacuum packaging and sea freight-specific packaging available.
Customisation Services
  • Full-Dimensional Customisation: Customise diameter, thickness, reduced opening size, and materials.
  • Sample Service: Provide 3-5 small-batch samples for testing and verification.
  • Fast Delivery: Standard production cycle of 25 days, customised products in 35 days.

Tag:

Elliptical Dish Head,

Tank Dished Ends,

Elliptical Tank Heads
