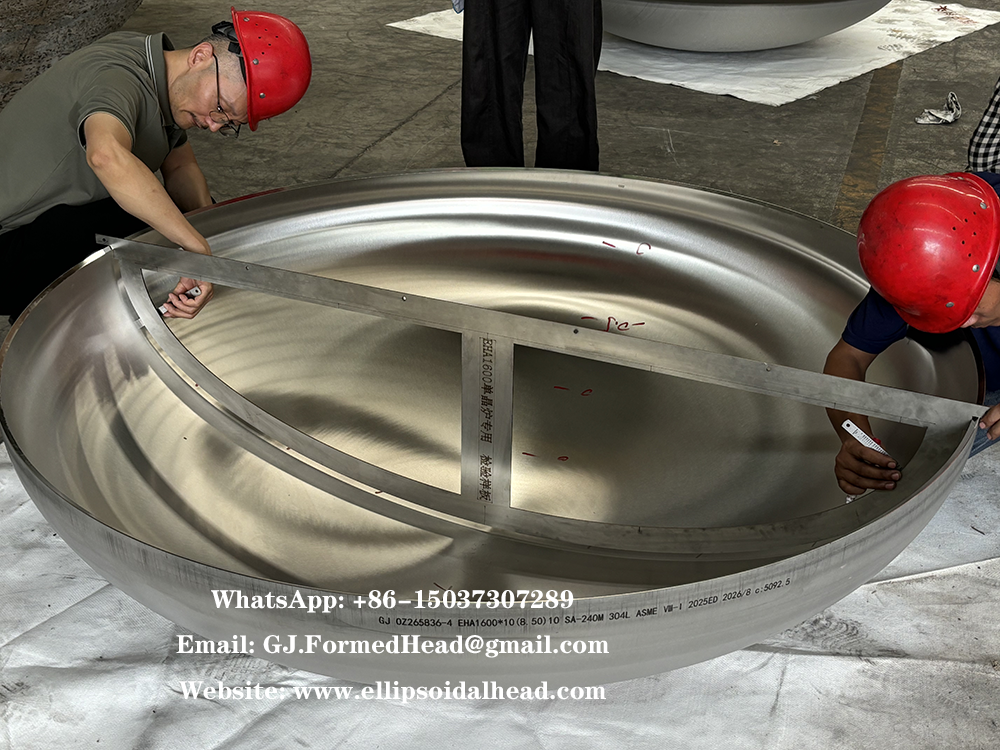

304L Stainless Steel Vacuum Furnace End Cap for Silicon Semiconductor Furnace

304L Stainless Steel Vacuum Furnace End Cap for Silicon Semiconductor Furnace

1.Vacuum Furnace End Cap Specifications:

2. Vacuum Furnace End Cap Certificates:

Henan Guojiang Precision Formed Head Co., Ltd. as One of Leading Manufacturers of Vacuum Furnace End Cap in China, We are Certified with ASME, ISO, PED Certificates, with Manufacturing Standards Available including ASME, PED/EN, DIN, GB/T, etc.

3. Vacuum Furnace End Cap Quality Control:

(1). Available Manufacturing Standards: ASME, PED/EN, DIN, GB/T, etc.

(2). EN 10204 3.1 Material Test Certificates are Supplied for Every Order.

(3). Our QC Department Carries Out Strict Quality Inspections. We Provide Quality Certificates, Inspection Documents and Mill Certificates with Furnace Heat Numbers for All Customers.

(4). 100% Traceability of Raw Materials with Furnace Heat Number.

(5). 100% Traceability of Vacuum Furnace End Caps with Production Numbers, with our Order Management System.

4. We cooperate with well-known manufacturers of vessels, tanks, medical equipment, and more.

Henan Guojiang Precision Formed Head Co., Ltd With Extensive Production Experience and Comprehensive Manufacturing Capabilities. We have Long-Term Cooperation with Leading Domestic Pressure Vessel and Storage Tank Manufacturers that Require High-Quality Dished Ends. This Demonstrates that Our Vacuum Furnace End Caps are Widely Recognized and Accepted by Qualified Manufacturers Accross China.

Below is Partial List of Our Domestic Cooperating Manufacturers for Pressure Vessels and Storage Tanks Fabricators.

(1). CIMC Sanctum Cryogenic Equipment.

(2). Enric Gas Equipment.

(3). United Imaging Healthcare.

(4). Cobetter Filtration Equipment.

(5). Baowu Steel Group.

(6). Kadant Pulping Equipment.

(7). Austar Pharmaceutical Technology & Equipment.

(8). Meto Beer Equipment.

(9). Yongan Heli Special Equipment.

(10). Yingde Biomedical Equipment.

(11). Huate Electronic Chemicals.

(12). Deyang Cryogenic Technology.

(13). Shngda Filtration Equipment.

(14). Sanqiang Medical Devices.

(15). Runfeng Cryogenic Equipment.

(16). Sanjiang SPACE Mechanical Engineering.

5. Frequently Asked Questions (FAQ):

Q: What size range can you produce for Vacuum Furnace End Cap?
A: We provide cold-formed flanged and dished heads with diameters from 76 mm to 4000 mm. Hot forming is available for larger diameter requirements.

Q: What material options are available for your Vacuum Furnace End Cap?
A: We supply stainless steel, carbon steel, duplex steel and alloy steel. Common grades include 316L, 304, SA-516 Gr.70, S235JR, 2205 and more. Custom material grades are acceptable upon request.

Q: What surface treatments can you offer?
A: We offer raw mill finish, grinding and sanitary mirror polishing. Laser edge trimming and laser hole cutting can also be done as required.

Q: Can you perform non-destructive testing (NDT) on Vacuum Furnace End Cap?
A: Yes. Available NDT methods include UT, PT, RT and MT. Please note MT is not applicable for non-magnetic stainless steel materials. NDT reports will be provided together with certificates.

Q: Can you provide material certificates?
A: Yes. EN 10204 3.1 material test certificates are supplied for every order. The documents contain furnace heat numbers to guarantee full raw material traceability.

Q: Is full traceability available for your Vacuum Furnace End Cap?
A: Yes. Our order management system assigns unique production numbers. Every manufacturing step is inspected and signed off by the responsible person.

Traceability of raw materials with furnace heat number.

Traceability of Vacuum Furnace End Caps with Productioin Numbers from our Own Order Management System.
