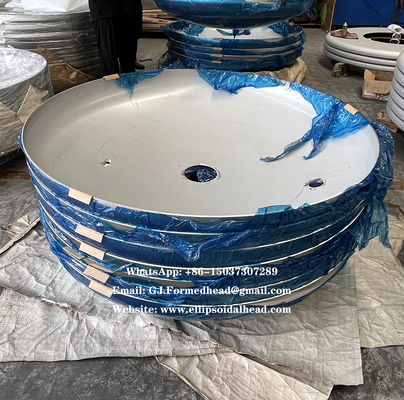

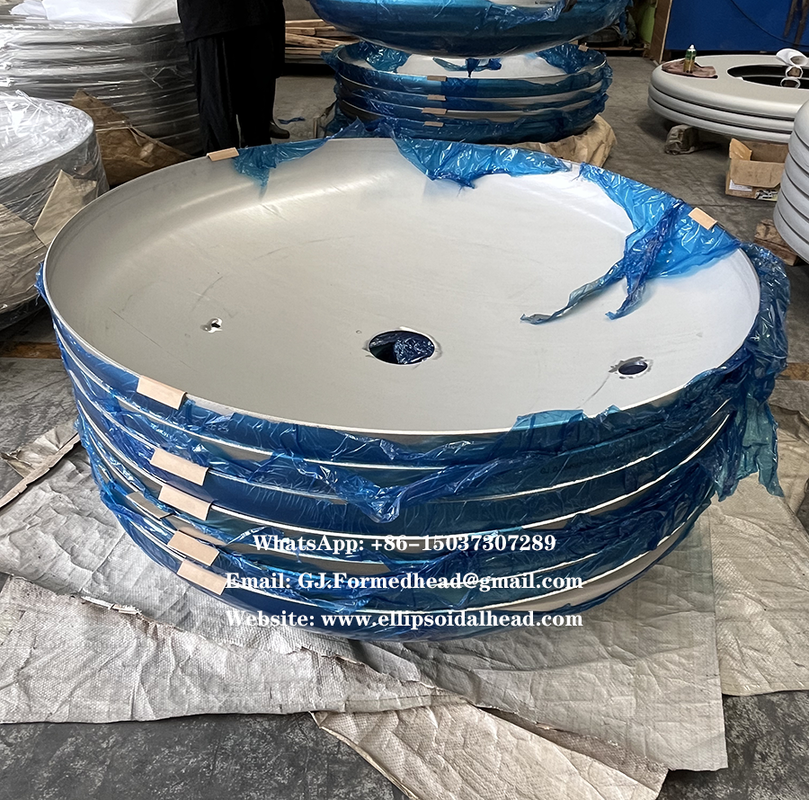

Stainless Steel Tank Head Manufacturer in China | ASME & PED
1.Stainless Steel Tank Head Specifications:
Our Factory Manufacture Stainless Steel Tank Heads from ASTM Raw Materials, Selected to Match Your Exact Requirements. Every Order Comes with an EN 10204 3.1 Material Certificate, Ensuring Full Traceability and Compliance. Available Raw Materials Include Stainless Steel, Carbon Steel, Alloy Steel, Duplex, and More.
ASTM Raw Materials Including:
(1). SA-516 Carbon Steel, Including SA-516 Gr.60 & Gr.70.
(2). SA-240M Stainless Steel, Including SA-240M 304/340L, 316/316L, 904L, etc.
(3). Customer-Specified Raw Materials are Accepted on Request.
| Stainless Steel Tank Heads Specifications |
| SA-240M Stainless Steel Mill Thickness |
Available in 2 – 25 mm thickness by cold forming; greater thicknesses can be produced by hot forming. |
| Stainless Steel Tank Heads Diameters |
from 76mm to 4000mm by Cold Forming. |
| Straight Flange(SF) |
Available in 25mm, 30mm, 40mm, 50mm, etc.
According to Customer Requirements, Custom Size Accepted.
|
| Available Shapes |
Elliptical, Torispherical, Conical, Toriconical, Flange and Reversed, Flat Type, Hemispherical, Hole Flanging and Trepanning Type, Custom Order Accepted. |
| Available Jogging Dimensions |
Max Diameter is 2.6Meters, Max Thickness is 10mm. |
| Beveling Type |
VO, VI, No Bevel, etc. |
| Manufacturing Standards |
ASME, PED/EN, DIN 28011, DIN28013, GB/T, etc. |
2. Stainless Steel Tank Head Certifications:
Our Factory Certified with ASME, PED and ISO Certificates, with Manufacturing Standards of ASME, PED/EN, DIN 28011, DIN28013, GB/T, etc.
Provided Materials Testing Certificates (MTC) EN 10204 3.1 for Every Stainless Steel Tank Heads from our Factory.
A Quality Certificate is Provided with Every Order from Our Factory. Each Quality Certificate Contains the Real QC Inspection Values Recorded, Including Dimensions, Thickness, Roundess, Diameter Tolerance, Uniform Thickness, Forming Type, Furnace Heat Number, MCT Certificate, Uniform Height, Polishing Surface Value, Heat Treatment, NDT, etc. It also Carries the Inspection and Batch Number, Allowing The Stainless Steel Tank Heads to be Traced Back to Its Original Materials Certificate. This Gives you Full Traceability and Documented Quality Compliance on Every Shipment.
| Certification Standards |
| GB/T 25198-2023 |
| ASME BPVC Sec.VIII Div 1 |
| PED (Pressure Equipment Directive) |
| ISO 9001:2015 |
| ISO 14001:2015 |
3. Stainless Steel Tank Head Applications:
Stainless Steel Tank Heads are Available with a Polished Finish or in the Original Mill Finish Surface Condition, According to our Customer Request.
Normally Polished Stainless Steel Tank Heads with Features of Easy Cleaning, Minimizes Products Adhesion, Leaves no Points for Bacteria to Harbor, and Provides Better Corrosion Resistance. Making it Compliant with Sanitary Grade and Food, Pharmaceutical Regulations.
| Polished Stainless Steel Tank Heads Mainly Used for: |
| Food & Beverage |
Juice Tanks, Edible Oil Tanks, Dairy Storage Tanks Asepit Tanks, etc. |
| Brewing & Fermentation |
Beer Fermentation Tanks, Maturation Tanks, etc. |
| Pharmaceutical & Biotech |
Reactor Tanks, Mixing/Batching Tanks, Clean Storage Tanks, etc. |
| Cosmetic & Dairy Chemicals |
Raw Materials Storage Tanks, Mixing Tanks, etc. |
| Water Treatment |
Pure Water Tanks, Potable Water Tanks, Reverse Osmosis Storage Tanks, etc. |
| Medical & Clean |
Cleanroom Containers, Purified Water Systems, etc. |
| Stainless Steel Tank Heads in Mill Finish Mainly Used for: |
| CHemical & Petrochemical |
Reactors, Heat Exchangers, Process Storage Tanks, etc.
|
| Oil & Gas |
Oil & Gas Spparators, Buffer Tanks, LPG/LNG Related Vessels, etc.
|
| High-Pressure Vessels |
Thick-Wall High Pressure Storage Tanks, Air Receiver Tanks, etc. |
| Large Storage Tanks |
Large Diameter Industrial Tanks, Mixing and Finished Product Tanks, etc. |
| Cryogenic & Low Temperature |
Cryogenic Storage Tanks, Cryogenic Vessels, etc. |
| Environmental & Wastewater |
Wastewater Treatment Tanks, Chemical Dosing Tanks, etc. |
4. Stainless Steel Tank Heads Manufacturing Process:
(1). Raw Material Inspection: Materials Testing Certificate (MTC) EN 10204 3.1 Certificate for Grade and Used for Traceability with Furnace Heat Number.
(2). Cutting & Blanking: The Mill Plate is Cut into Precise Blanks Using Automatic Laser Cutting Equipment, before Forming.
(3). Forming: Stainless Steel Tank Heads Can be Formed by Cold Pressing, Hot Pressing, Spinning. Selected According to Thiciness, Diameter and Materials.
(4). Heat Treatment/Pickling/Solution Treament: Normally Stainless Steel Tank Heads with Pickling, Solution Treatment, When Required.
(5). Edge Preparation: The Stainless Steel Tank Heads is Trimmed to Exact Diameter/Height/Straight Flange Value and Beveled (V/VO/VI) Ready for Welding.
(6). Surface Treatment: Pickling, Passivation, Sand Blasting, Polishing, etc. According to Customer Requirement.
(7). Non-Destructive Testing (NDT): Including PT, RT, MT, UT.
(8). QC Inspection: Roundness, Diameter, Thickness, Height, Straight Flange, Angle, Surface, etc. Every Items Checked and Qualified, the Final Marking(Laser Code & Inject Print) Will be Done, and Quality Certificates Issued.
(9). Package and Delivery.
5. Frequently Asked Questions (FAQ):
Q: What Forming Types are Mainly Used for Stainless Steel Tank Heads?
A: Mainly Including Cold Forming, Hot Forming, Spinning, Drum Pressing.
Q: Do you Accept Custom Orders?
A: Yes, we accept custom orders for various shapes and dimensions, supported by our strong technical team.
Q: U-Stamp Available?
A: Yes, U-Stamp is Available, Our Factory Certified with ASME Certificate, It requires an authorized third-party inspector to visit our factory, which may incur an additional fee and extend the lead time.
Q: What is your Manufacturing Code and Certified Certificates?
A: Henan Guojiang Precision Formed Head Co., Ltd. is Ceritified with ASME, PED & ISO Certificates.
Our Manufacturing Processes Comply with ASME, PED/EN, DIN 28011, DIN 28013, and GB/T Production Standards.
Q: Do you Strictly Follow On-Time Delivery?
A: Yes, Delivery Time Calculated by our Innternal Order Management System, We can Tell Our Customer Delivery Time Before Order Placement.
Q: Provided EN10204 3.1 Certificte?
A: Yes, We are Providing EN10204 3.1 Materials Inspection Certificate for Every Order from our Factory.
Q: Are you a Manufacturer or a Trading Company?
A: We are Professional Manufacturer of Stainless Steel Tank Heads---Henan Guojiang Precision Formed Head Co., Ltd. We own our factory with Full Production Equipment, Engineering Team and in-house Inspecition Lab. We provide one-stop services from raw material procurement, forming, heat treatment, NDT testing to finished product delivery.
