1.About Joggled Torispherical Head from Henan Guojiang Precision Formed Head Co., Ltd.

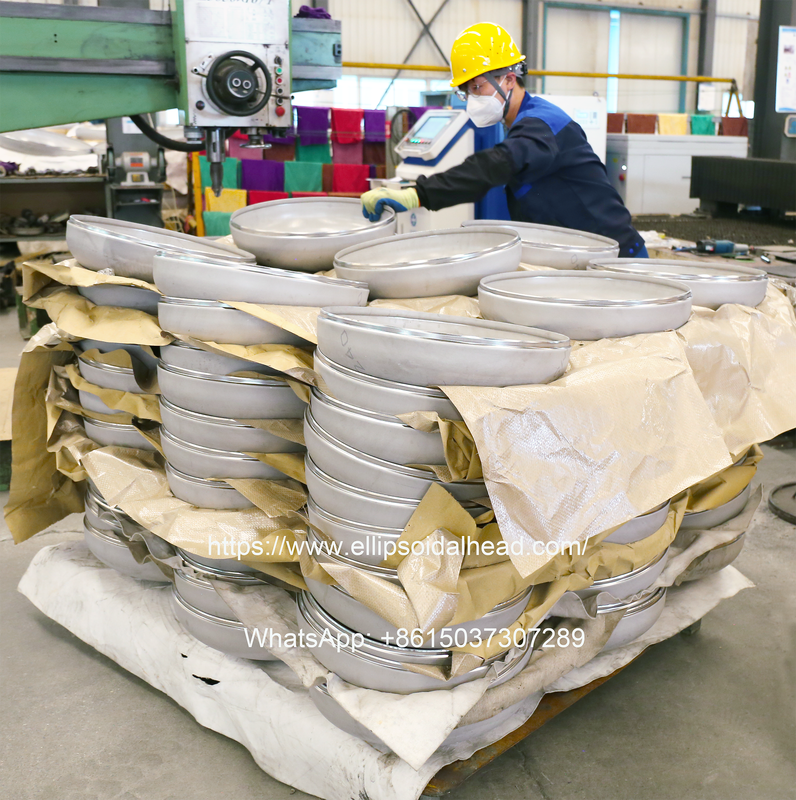

(1). Joggled Torispherical heads feature an inward offset joggled flange at the straight edge. The unique stepped profile enables the head to insert neatly into the cylindrical tank shell, delivering superior fit-up during vessel assembly.
(2). Available in torispherical and elliptical types, manufactured by mould pressing or metal spinning. Materials include carbon steel and stainless steel for storage tanks, LPG vessels, wastewater equipment and general pressure vessels, etc.

2. Advantages of Joggled Torispherical Head from GJ Formed Head Factory:

(1). Precise Insert Fit-Up.

(2). Optimized Welding Performance.
(3).Uniform welding gap, suitable for automatic welding.
(4). Reduce assembly workload and improve production efficiency.
(5). Depth and width of joggled step can be customized according to customers' tank shell drawing requirements.
Available in elliptical and torispherical dished head types.

3. Certificates from Henan Guojiang Precision Formed Head Co., Ltd.

(1). Authorized Certifications: ISO, ASME, PED, and other relevant pressure vessel certificates.

(2). Follows International Production Standards strictly, which exactly meets our customers' demand.

(3). 100% Full Inspections after production before Delivery.

(4). Complete Documentation provided for each order:

(a). Raw steel plate Materials Testing Certificate(MTC).

(b). Report of quality examination of Dished Heads.

(c). Partial Data report of Dished Heads.

(d). NDT Report for Large-Sized Welded Dished Heads. (RT, UT, PT)

4. Main Products Range from Henan Guojiang Precision Formed Head Co., Ltd.

(1). Elliptical Head

(2). Torispherical Head

(3). Polished Mirror Head

(4). Conical Head

(5). Flat Head

(6). Pressure Vessel & Tank Head

(7). Pipe Caps

(8). Custom Order Accepted.

(9). Stainless Steel Dished Heads for Cryogenic Industry.

5. Frequently Asked Questions(FAQ):

Q1: Is the ASME certification genuine, and can you provide the U/U2 stamp?
A: Yes. Our heads are manufactured under an ASME-authorized quality program with U and U2 stamp capability. We provide the full ASME Data Report (Form U-1/U-2) and Partial Data Report upon delivery. If you need U Stamp or ASME Standard Production(no Additional Cost), Please let us know earlier then We will make quotation cluding U Stamp Fee, because of U Stamp Cost additional Fee for Third-Party On-site Witness.

Q2: Do you provide material certificates (EN 10204 3.1 )?
A: Absolutely. EN 10204 Type 3.1 certificates are standard for all shipments.

Q3: What is your typical lead time?
A: For standard sizes in stock grades (304/316L), lead time is typically 15–25 working days. Custom sizes, special alloys, or large diameters may require 30–45 working days. We will confirm a precise delivery schedule upon order placement.

Q4: Can you supply heads with PED / CE marking for the European market?
A: Yes. We supply PED 2014/68/EU-compliant heads with CE marking for all applicable categories. The head can be delivered with a PED certificate of conformity and notified body inspection where required.

Q5: How do you package heads for international shipping?
A: Each head is individually wrapped with protective film, secured in a fumigation-free wooden crate or steel frame, and braced to prevent movement during transit. We ship globally via FCL, LCL, or breakbulk, with full export documentation including packing list, commercial invoice, and certificate of origin.

Q6: Can you manufacture non-standard or custom-shaped heads?
A: Yes. In addition to standard ASME & PED and DIN 28011 torispherical profiles, we can produce custom crown radii (CR), knuckle radii (KR), and straight flange lengths per your engineering drawings. Please send your drawing or specification for a feasibility review.
