ASME Certified Stainless Steel Joggled Dished Head from GJ Formed Head Manufacturer
1. Introduction about Joggled Dished Head:

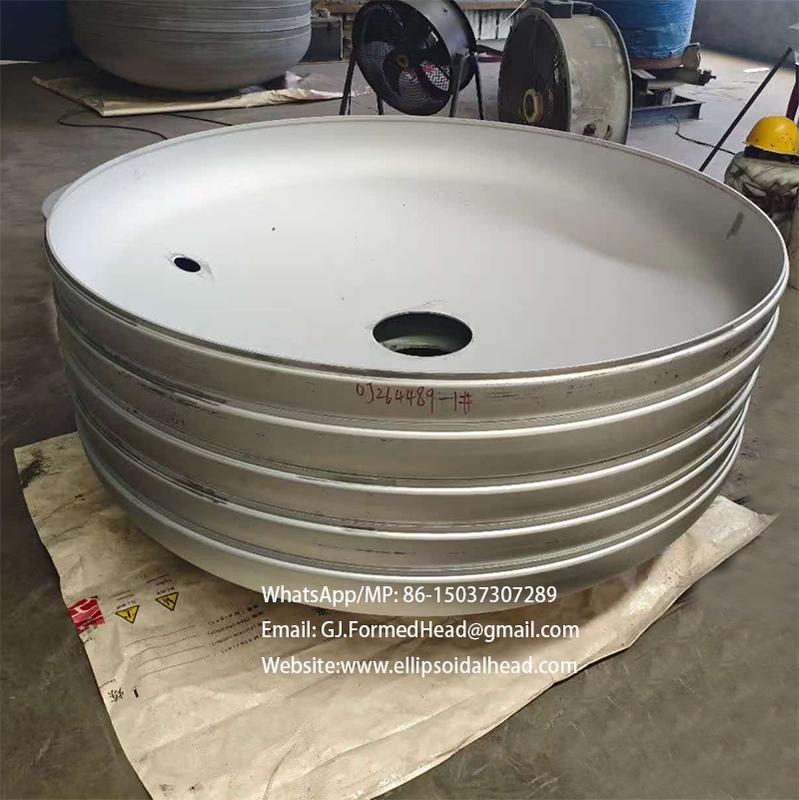

Joggled Dished Heads from Henan Guojiang Precision Formed Head Co., Ltd. with Maximum Diameter of 2600mm(102.36'') and a Maximum Thickness of 10mm.
(1). Joggled Dished Heads, Also Referred to as Stepped Insert Tank Heads, Feature an Inward Offset Joggled Flange Machined on the Straight Edge of the Dished Heads. The Design Enables the Joggled Dished Head to be Inserted Directly Into the Cylindrical Tank Shells.
(2). The Depth and Width of the Joggled Dished Heads Can be Customized in Accordance with Customers' Drawing Specifications.
(3). Joggled Dished Heads Facilitate Simple Assembly and Lower Welding Costs while Achieving a Precse Fit with Tank Shells.
They Maintain a Consistent Welding Gap, Ensuring Reliable Performance Under High-Pressure Operating Conditions.
(4). A Joggled Tank Head is Engineered for Seamless Fitting into Tank Shells. Jogging is a Forming Process that Creates an Offset on the Edge of a Dished Head for Tight Matching with Cylindrical Tank Shells.
(5). The Joggling Process Significantly Improves Component Alignment, Cuts Welding Time, and Strengthens Pressure Tightness.
2. Key Advantages of Joggled Dished Head:
(1). Precise Insert fit-up with Tank Shells.
(2). Uniform Welding Gap, Suitable for Automatic Welding.
(3). Reduce Assembly Workload and Improve Produciton Efficiency.
(4). Depth and width of joggled step can be customized according to customers' tank shell drawing requirements.
3. Frequently Asked Questions(FAQ):
Q: What is a joggled dished head?
A: A Joggled dished head has an inward stepped flange. It can be inserted into the tank cylinder for simpler assembly and welding.
Q: What size of joggled tank heads can you supply?
A: Custom joggled dished heads OD 100~2600mm, thickness 3-10mm. Elliptical and torispherical types are available.
Q: Joggled Dished Heads with Specificaitons demanded?
A: We Require the Width and Depth of Joggled Step.
