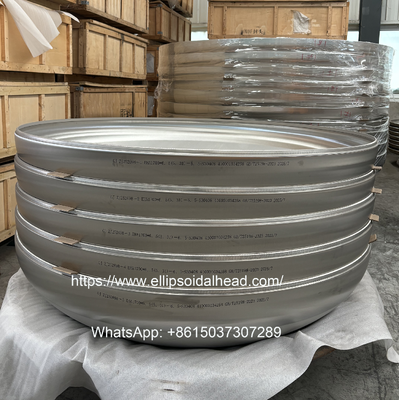

ASME U-Stamp Certified Stainless Steel Cold Pressed Single or Double Joggle Dish Head with Edge Prep

ASME U-Stamp Certified Stainless Steel Cold Pressed Single or Double Joggle Dish Head with Edge Prep

1.About Joggle Dish Head Manufactured by GJ Formed Head Factory:

The ASME Stainless Steel Joggle Dish Head manufactured by the Joggle Forming Process is a high-precision component designed for pressure vessel applications requiring enhanced structural integrity and reliable sealing performance. This forming technique creates a stepped or joggled edge that improves joint alignment and facilitates secure welding or assembly with adjoining shells.

Made from high-quality stainless steel, the head offers excellent corrosion resistance, durability, and strength under high-pressure and high-temperature conditions. The joggle forming design not only enhances load distribution but also ensures improved dimensional accuracy and fit-up efficiency during fabrication. It is widely used in chemical, petroleum, food processing, and energy industries where safety and long service life are critical requirements.

2. Quality Control of Joggle Dish Head from GJ Formed Head Factory:

ASME-certified quality, complete manufacturing capabilities, strict quality control, and trusted professional industry engineers in our factory for daily production guidance.

Inspection Protocols: 100% full inspection, including UT, PT, and dimensional checks.

(1).Compliance: GB/T 25198-2023, ASME BPVC Sec.VIII Div 1

(2).Certifications: ISO 9001:2015, ISO 14001:2015, ASME "U" Stamp approval

3. Package and Delivery:

Joggle Dish Head from Henan Guojiang Precision Formed Head Co., Ltd with Pacakge Standards demand:Before packaging, the product is securely wrapped with plastic film to ensure protection and prevent surface damage.

(1). Carton Packing, Wooden Package.

(2). 20'GP Container, 40'GP Container, etc.

(3). Packed in a reinforced steel frame for enhanced protection during transportation and handling.

4. Related Main Products from GJ Formed Head Factory:

(1). Elliptical Head

(2). Torispherical Head

(3). Polished Mirror Head

(4). Conical Head

(5). Flat Head

(6). Pressure Vessel & Tank Head

(7). Customization Accepted

(8). Pipe Caps.
