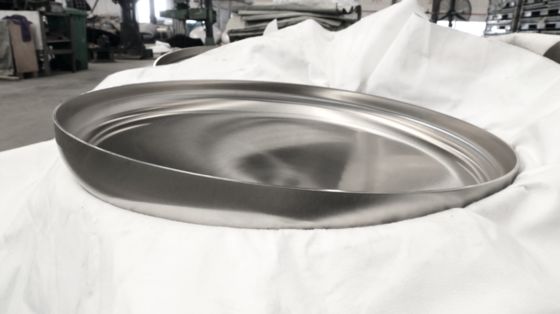

316L Stainless Steel Torispherical Head with 850mm Inner Diameter and 5mm Thickness for Beer Equipment

316L Stainless Steel Torispherical Head with 850mm Inner Diameter and 5mm Thickness for Beer Equipment
316L Stainless Steel Torispherical Head with 850mm Inner Diameter and 5mm Thickness for Beer Equipment

Large Image :  316L Stainless Steel Torispherical Head with 850mm Inner Diameter and 5mm Thickness for Beer Equipment

Product Details:
Place of Origin: Henan, China
Brand Name: Guojiang
Certification: ASME, PED, GB, ISO
Model Number: THA 850X5
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $25-10000
Packaging Details: Wooden cases, wooden pallets, steel pallets, or customized according to customer requirements
Delivery Time: 10-30 days
Payment Terms: T/T,L/C
Supply Ability: 50,000 pieces per month
Contact Now Chat Now

316L Stainless Steel Torispherical Head with 850mm Inner Diameter and 5mm Thickness for Beer Equipment

description
Diameter: 76mm - 10000mm Roughness: RA 0.1-0.8μm
Thickness: 1mm -300mm Customization: Customise Products According To The Drawings And The Requirements
Material: Aluminum, 304, 316, 321, 2205, Q235, A36, Q245R, Q345R, SA-516Gr.60/65/70, 16MnDR, S275JR Etc.. Downstream Aplications: Industrial Dewar Flask Heads,on-board Gas Cylinder Heads,quick-cooling Storage Tank Heads,on-board Storage Tank Heads,heads For Food And Medical Equipment, ,water Purification Filter Pipeline End Cap，and Heads For Magnetic Resonance Equipment.
Highlight:

850mm Inner Diameter Torispherical Head

,

5mm Thickness Torispherical Head

,

ISO 9001:2015 Certified Torispherical Head

ONE-PIECE COLD PRESSING TORISPHERICAL HEAD (316L, 850*5) FOR BEER EQUIPMENT
Brand Overview
As a benchmark manufacturer in China's precision pressure vessel component industry, Henan Guojiang has specialised in the R&D, production, and customisation of torispherical heads for over 12 years. Our products are exported to more than 10 countries worldwide, meeting the high-standard production requirements of the beer industry and providing reliable core component solutions for beer equipment.
Specifications
  • Inner Diameter: 850mm - Suitable for small and medium-sized beer fermenters, storage tanks and other equipment
  • Nominal Thickness: 5mm - Optimised design for working pressure range of 0.1MPa-50MPa, compatible with beer production media
  • Material: 316L stainless steel - Each batch is equipped with a complete Material Test Certificate (MTC)
  • Material Composition: 16%-18% chromium, 10%-14% nickel, and 2%-3% molybdenum, offering excellent corrosion resistance
Manufacturing & Processing Advantages
Produced via cold forming technology to retain the original ductility and weldability of 316L stainless steel. Advanced hydraulic forming equipment ensures compliance with GB/T 25198 and ASME standards, resulting in smooth and uniform surfaces that avoid local stress concentration.
Quality Assurance
  • Inspection Process: 100% full inspection, including ultrasonic testing (UT), penetrant testing (PT), and 3D laser scanning
  • Compliance Standards: GB/T 25198-2023, ASME BPVC Section VIII Division 1, and PED 2014/68/EU directives
  • Certifications: ISO 9001:2015, ISO 14001:2015, and ASME "U" Stamp approval
Applications
Specifically designed for beer equipment, applicable to:
  • Head components of beer fermenters and mashing tanks
  • Beer raw material storage tanks and finished product storage tanks
  • Core components of small-scale craft beer production equipment
Customization Services
  • Inner diameter customisation: 60mm-10000mm
  • Thickness customisation: 1mm-300mm
  • Free finite element analysis (FEA) stress calculation
  • 2D/3D drawing design services
  • Sample service with 18 working day delivery cycle
Core Product Features
  • Reliable Structure: 850mm ID combined with 5mm thickness ensures uniform stress distribution, adapting to the beer equipment working conditions
  • Hygienic & Corrosion-Resistant: Surface roughness Ra ≤ 0.8μm, passing salt spray test, meeting food-grade hygiene requirements
  • Cost Optimised: Precise thickness design balances performance and procurement costs
From raw material procurement to finished product delivery, Henan Guojiang adheres to strict quality standards. This one-piece 850*5 316L stainless steel torispherical head delivers stable performance and reliable quality, enhancing operational safety and production efficiency for small and medium-sized beer equipment.

Tag:

Torispherical Dished Head,

Stainless Steel Head,

Vessel Dish Head
