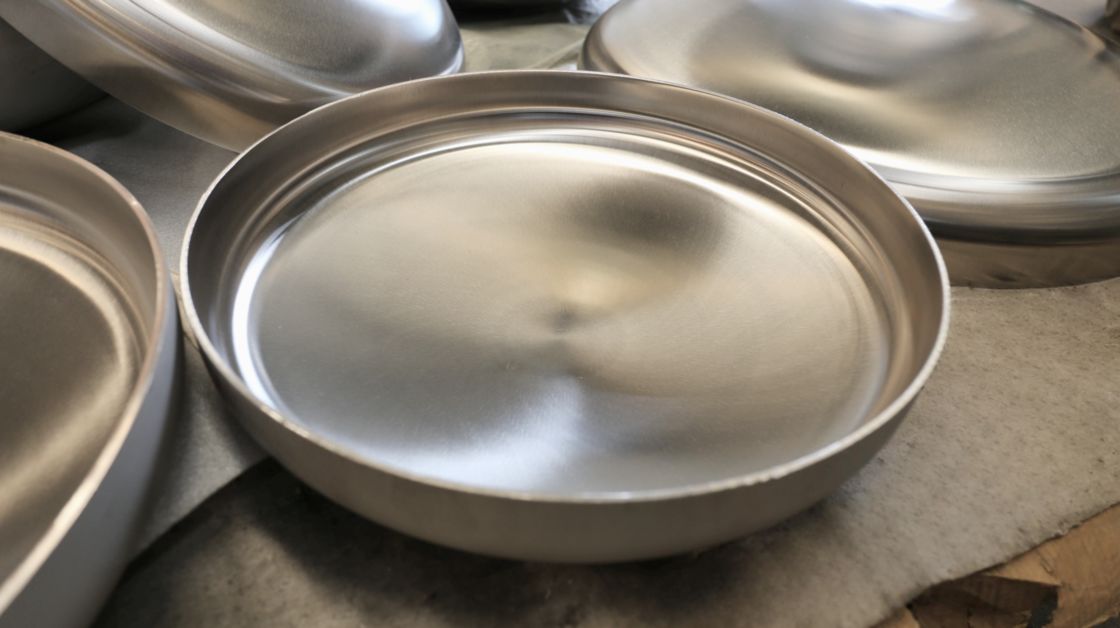

One-Piece 450mm Diameter 4mm Thickness Torispherical Head for Beer Equipment

One-Piece 450mm Diameter 4mm Thickness Torispherical Head for Beer Equipment
One-Piece 450mm Diameter 4mm Thickness Torispherical Head for Beer Equipment

Large Image :  One-Piece 450mm Diameter 4mm Thickness Torispherical Head for Beer Equipment

Product Details:
Place of Origin: Henan, China
Brand Name: Guojiang
Certification: ASME, PED, GB, ISO
Model Number: THA 450X4
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $25-10000
Packaging Details: Wooden cases, wooden pallets, steel pallets, or customized according to customer requirements
Delivery Time: 10-30 days
Payment Terms: T/T,L/C
Supply Ability: 50,000 pieces per month
Contact Now Chat Now

One-Piece 450mm Diameter 4mm Thickness Torispherical Head for Beer Equipment

description
Diameter: 76mm - 10000mm Roughness: RA 0.1-0.8μm
Thickness: 1mm -300mm Customization: Customise Products According To The Drawings And The Requirements
Material: Aluminum, 304, 316, 321, 2205, Q235, A36, Q245R, Q345R, SA-516Gr.60/65/70, 16MnDR, S275JR Etc.. Downstream Aplications: Industrial Dewar Flask Heads,on-board Gas Cylinder Heads,quick-cooling Storage Tank Heads,on-board Storage Tank Heads,heads For Food And Medical Equipment, ,water Purification Filter Pipeline End Cap，and Heads For Magnetic Resonance Equipment.
Highlight:

450mm torispherical head for beer equipment

,

4mm thick torispherical head

,

one-piece beer equipment torispherical head

Brand Overview

As a benchmark manufacturer in China's precision pressure vessel component industry, Henan Guojiang has specialised in the R&D, production, and customisation of torispherical heads for over 12 years. Our products are exported to more than 10 countries worldwide, meeting the high-standard production requirements of the beer industry and providing reliable core component solutions for beer equipment.

Specifications

  • Inner Diameter: 450mm - Suitable for small and medium-sized beer fermenters, storage tanks and other equipment
  • Nominal Thickness: 4mm - Optimised design for working pressure range of 0.1MPa-50MPa, compatible with beer production media
  • Material: 316L stainless steel - Each batch is equipped with a complete Material Test Certificate (MTC)
  • Material Composition: 16%-18% chromium, 10%-14% nickel, and 2%-3% molybdenum, offering excellent corrosion resistance

Manufacturing & Processing Advantages

Produced via cold forming technology to retain the original ductility and weldability of 316L stainless steel. Advanced hydraulic forming equipment ensures compliance with GB/T 25198 and ASME standards, resulting in smooth and uniform surfaces that avoid local stress concentration.

Quality Assurance

  • Inspection Process: 100% full inspection, including ultrasonic testing (UT), penetrant testing (PT), and 3D laser scanning
  • Compliance Standards: GB/T 25198-2023, ASME BPVC Section VIII Division 1, and PED 2014/68/EU directives
  • Certifications: ISO 9001:2015, ISO 14001:2015, and ASME "U" Stamp approval

Applications

Specifically designed for beer equipment, applicable to:
  • Beer raw material storage tanks and finished product storage tanks
  • Head components of beer fermenters and mashing tanks
  • Core components of small-scale craft beer production equipment

Packaging & Customisation Services

Packaging Solutions

  • Export-grade fumigated wooden cases for single-unit precision packaging
  • Steel pallets with a load capacity of≥ 500kg for bulk orders

Customisation Services

  • Inner diameter customisation: 60mm-10000mm
  • Thickness customisation: 1mm-300mm
  • Free finite element analysis (FEA) stress calculation
  • 2D/3D drawing design services
  • Sample service with 18 working day delivery cycle

Core Product Features

  • Reliable Structure: 450mm inner diameter combined with 4mm thickness ensures uniform stress distribution, adapting to beer equipment working conditions
  • Hygienic & Corrosion-Resistant: Surface roughness Ra ≤ 0.8μm, passing salt spray test, meeting food-grade hygiene requirements
  • Cost Optimised: Precise thickness design balances performance and procurement costs
From raw material procurement to finished product delivery, Henan Guojiang adheres to strict quality standards. This one-piece 450×4 316L stainless steel torispherical head delivers stable performance and reliable quality, enhancing operational safety and production efficiency for small and medium-sized beer equipment.
