High-Precision S275JR Torispherical Dish Head - Customizable for Multi-Industry Pressure-Bearing Scenarios

High-Precision S275JR Torispherical Dish Head - Customizable for Multi-Industry Pressure-Bearing Scenarios
High-Precision S275JR Torispherical Dish Head - Customizable for Multi-Industry Pressure-Bearing Scenarios

Large Image :  High-Precision S275JR Torispherical Dish Head - Customizable for Multi-Industry Pressure-Bearing Scenarios

Product Details:
Place of Origin: Henan, China
Brand Name: Guojiang
Certification: ASME, PED, GB, ISO
Model Number: MD 1664×6
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $25-10000
Packaging Details: Wooden cases, wooden pallets, steel pallets, or customized according to customer requirements
Delivery Time: 10-30 days
Payment Terms: T/T,L/C
Supply Ability: 50,000 pieces per month
Contact Now Chat Now

High-Precision S275JR Torispherical Dish Head - Customizable for Multi-Industry Pressure-Bearing Scenarios

description
Brand Name: Guojiang Diameter: 76mm - 10000mm
Thickness: 1mm -300mm Forming Method: Hot Forming;Cold Forming
Customization: Customise Products According To The Drawings And The Requirements Material: Aluminum, 304, 316, 321, 2205, Q235, A36, Q245R, Q345R, SA-516Gr.60/65/70, 16MnDR, S275JR Etc..
Highlight:

S275JR torispherical dish head

,

Customizable torispherical pressure head

,

Multi-industry pressure-bearing dish head

Core Specification Parameters
Parameter Value Description
Inner Diameter 1664mm Suitable for medium and large special equipment, diameter deviation ≤±0.8mm to ensure precise connection with cylinders
Nominal Thickness 6mm Optimised via pressure simulation, applicable for 0.1MPa-40MPa, compatible with neutral and weakly corrosive media
Structural Standard Dish-Shaped Curved Design Reasonable ratio of transition arc and straight edge segment, dispersing local stress and improving pressure-bearing stability
Manufacturing Advantages
  • Hot Press Forming: Processed by a 1500-ton hydraulic press with hot pressing technology, ensuring stable material structure and high production efficiency
  • Precision & Compliance: Meets GB/T 25198-2023 and EN 10025 standards, adapting to domestic and international special equipment production needs
  • Comprehensive Inspection: Passes Ultrasonic Testing (UT) and Penetrant Testing (PT) to strictly control product quality
Application Fields
  • Chemical Industry: Medium and low pressure reactors, solvent storage tanks
  • Environmental Protection: Industrial wastewater treatment pressure tanks, pressure-bearing heads for environmental protection equipment
  • Machinery Manufacturing: Energy storage tanks for hydraulic systems, large compressor air storage tanks
  • Thermal Engineering: Pressure tanks for heating systems, end heads for heat exchangers
Core Features
  • Reliable Structure: Curved design achieves uniform stress distribution, extending equipment service life
  • Strong Adaptability: Compatible with medium and low pressure working conditions in multiple industries, meeting custom needs of non-standard equipment
  • Cost-Effective: Optimised material selection and thickness design balance performance and cost
  • Global Compatibility: Complies with international standards to facilitate global supply chain integration
Quality Certifications

Holds ISO 9001:2015 Quality Management System Certification and ISO 14001:2015 Environmental Management System Certification, meeting high-quality requirements for industrial pressure-bearing components

Packaging & Customisation Services

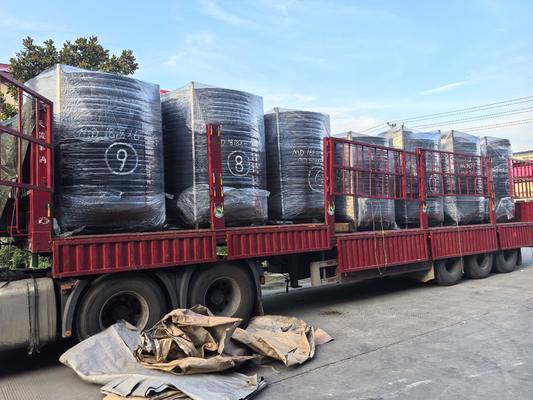

  • Packaging: Export-grade wooden crates/steel pallets with shockproof and waterproof protection
  • Customisation: Supports size customisation (inner diameter 200mm-10000mm, thickness 3mm-60mm) with professional technical support

Tag:

Torispherical Dished Head,

Stainless Steel Head,

Vessel Dish Head
