1510mm Diameter 5mm Thickness Flat Dished Head with RA 0.1-0.8μm for MRI Equipment Pressure Vessel

Name: 1510mm Diameter 5mm Thickness Flat Dished Head with RA 0.1-0.8μm for MRI Equipment Pressure Vessel
Brand: Henan Guojiang Precision Head Co., Ltd
SKU: FHA 1510×5
Price: 5,012.00 USD
Availability: InStock

All Products

Ellipsoidal Head
(14)

Conical Head
(4)

Elliptical Head
(6)

Torispherical Head
(9)

Polished Head
(6)

Pressure Vessel Head
(1)

Dished Tank Heads
(4)

Stainless Steel Head
(2)

Carbon Steel Head
(4)

Flat Dished Head
(10)

Spherical Cap Head
(3)

Pipe End Cap
(10)

Certification

I'm Online Chat Now

1510mm Diameter 5mm Thickness Flat Dished Head with RA 0.1-0.8μm for MRI Equipment Pressure Vessel

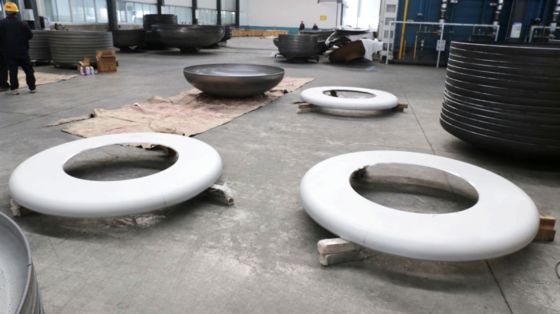

Large Image : 1510mm Diameter 5mm Thickness Flat Dished Head with RA 0.1-0.8μm for MRI Equipment Pressure Vessel

Product Details:

Place of Origin:	Henan, China
Brand Name:	Guojiang
Certification:	ASME, PED, GB, ISO
Model Number:	FHA 1510×5

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$25-10000
Packaging Details:	Wooden cases, wooden pallets, steel pallets, or customized according to customer requirements
Delivery Time:	10-30 days
Payment Terms:	T/T,L/C
Supply Ability:	50,000 pieces per month

Contact Now Chat Now

1510mm Diameter 5mm Thickness Flat Dished Head with RA 0.1-0.8μm for MRI Equipment Pressure Vessel

description

Diameter:	76mm - 10000mm	Thickness:	1mm -300mm
RA:	0.1-0.8μm	Forming Processes:	Cold Forming; Hot Forming
Inspection Methods:	PT, UT, RT, TOFD, MT	Material:	Aluminum, 304, 316, 321, 2205, Q235, A36, Q245R, Q345R, SA-516Gr.60/65/70, 16MnDR, S275JR Etc..
Highlight:	1510mm Diameter Flat Dished Head , 5mm Thickness Pressure Vessel Head , RA 0.1-0.8μm Flat Bottom Dish

1510mm Diameter × 5mm Thickness Flat Dished Head For MRI

Relying on precise structural design, stable pressure-bearing performance and ultra-high processing precision, this product adapts to the working conditions of key parts such as liquid helium storage and cooling systems of MRI equipment, meeting the strict requirements of the equipment for tightness, impact resistance and surface cleanliness, providing reliable support for the stable operation of MRI equipment.

Core Parameters

Specification: 1510mm diameter × 5mm thickness, suitable for the special tank structure of MRI equipment
Precision: Flatness controlled within 3mm, meeting the high-precision installation requirements of MRI equipment
Surface Quality: Surface roughness ≤ 0.4μm after polishing, complying with the cleanliness standards of high-end medical equipment

Manufacturing Process

Adopts high-precision cold forming technology, strictly controls parameters throughout the production process to ensure the integrity of the head structure, smooth surface, no cracks, wrinkles and other defects, and accurately matches the assembly tolerance requirements of MRI equipment.

Inspection Standards

100% Ultrasonic Testing (UT): Comprehensive inspection of internal hidden defects
Penetrant Testing (PT): Detection of tiny surface cracks to eliminate leakage hazards
Precision dimensional verification: Ensuring key parameters such as diameter, thickness and flatness meet standards
Visual surface inspection: Checking surface finish and appearance quality

Certifications

Compliant with GB/T 25198-2010, ASME BPVC Sec.VIII Div 1, PED 2014/68/EU, JIS B8243 standards. Certifications include ISO 9001:2015 Quality Management System, ASME "U" Stamp, and Food Contact Material Certification, meeting the compliance requirements of medical equipment.

Packaging Options

Single-head fumigated wooden case packaging: Equipped with shock-absorbing buffer materials to avoid transportation damage
Bulk pallets (6-10 pieces per pallet): Adapting to the transportation needs of bulk purchases
Custom vacuum packaging: Moisture and corrosion-proof, ensuring the stability of product storage and transportation

Customization Services

Supports adjusting parameters such as size and opening position according to the specific needs of MRI equipment
Provides sample testing services to ensure product adaptability
Delivery cycle: Precisely planned according to order requirements to ensure timely supply

Key Application Fields

Specifically designed for magnetic resonance (MRI) equipment, suitable for:

Liquid helium storage tank heads for MRI equipment
Pressure-bearing components of MRI cooling systems
Special pressure vessel heads for medical imaging equipment
