2500mm×8mm S30408 Flat Bottom Head: ISO 9001 Certified, Suitable for Chemical/Food/Nuclear Power Scenarios

Large Image : 2500mm×8mm S30408 Flat Bottom Head: ISO 9001 Certified, Suitable for Chemical/Food/Nuclear Power Scenarios

Product Details:

Place of Origin:	Henan, China
Brand Name:	Guojiang
Certification:	ASME, PED, GB, ISO
Model Number:	FHA 2500×8

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$25-10000
Packaging Details:	Wooden cases, wooden pallets, steel pallets, or customized according to customer requirements
Delivery Time:	10-30 days
Payment Terms:	T/T,L/C
Supply Ability:	50,000 pieces per month

Contact Now Chat Now

2500mm×8mm S30408 Flat Bottom Head: ISO 9001 Certified, Suitable for Chemical/Food/Nuclear Power Scenarios

description

Diameter:	76mm - 10000mm	Thickness:	1mm -300mm
RA:	0.1-0.8μm	Inspection Methods:	PT, UT, RT, TOFD, MT
Forming Processes:	Cold Forming; Hot Forming	Material:	Aluminum, 304, 316, 321, 2205, Q235, A36, Q245R, Q345R, SA-516Gr.60/65/70, 16MnDR, S275JR Etc..
Highlight:	2500mm Diameter Flat Dished Head , 8mm Thickness Flat Bottom Head , S30408 Pressure Vessel Head

2500mm×8mm S30408 Flat Bottom Head

ISO 9001 Certified | Suitable for Chemical, Food & Nuclear Power Applications

Product Overview

This flat-dished head features a 2500mm diameter and 8mm thickness, compatible with S30408, 316L, and Q345R materials. Its large-size structure provides high-strength pressure-bearing performance and stable structural rigidity, making it ideal for:

Large-scale container equipment under medium/high-pressure conditions
Applications requiring large-capacity storage
High-flow medium transmission systems
Scenarios demanding exceptional equipment tightness and impact resistance

Material Advantages

S30408 stainless steel (food-grade certified) offers outstanding corrosion resistance against atmospheric and weak acid-base media. Raw materials are sourced from certified suppliers including Taiyuan Iron and Steel and Baosteel, with complete Material Test Certificates (MTCs) for reliable, traceable quality.

Manufacturing & Surface Treatment

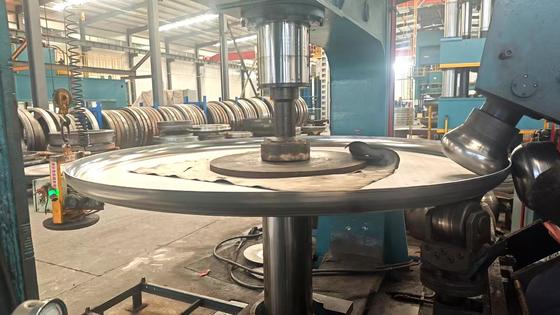

Forming Process: Cold forming via a thousand-ton hydraulic press ensures material integrity with smooth, flat surfaces free from cracks or wrinkles. Dimensional accuracy meets strict industrial-grade installation requirements.

Surface Treatment Options:

Standard: Chemical polishing (Ra ≤ 1.6μm)
Passivation: Enhanced surface resistance to weak acids/alkalis
Custom: Mirror polishing (Ra ≤ 0.8μm) or sandblasting (Ra 1.6μm-3.2μm)

Quality Assurance

Inspection Standards:

100% Ultrasonic Testing (UT)
Penetrant Testing (PT)
Precision dimensional verification
1.5× rated pressure sampling tests
Visual surface inspection

Certifications

Compliant with international standards including:

ASME BPVC Sec.VIII Div 1 PED 2014/68/EU GB/T 25198-2010 JIS B8243

ISO 9001:2015 ASME "U" Stamp Food Contact Material

Packaging & Services

Packaging Options:

Single-head wooden cases (fumigated)
Bulk pallets (10-15 pieces per pallet)
Custom vacuum packaging

Customisation Services:

Personalised adjustment of opening size
Customised surface treatment processes
Sample testing (3-5 units)
Delivery time: 15 days (standard), 25 days (customised)
