SUS304 Stainless Steel Conical Dished Head - Half Apex Angle 45°, Small End Diameter 910mm, Large End Diameter 3016mm, Thickness 8mm

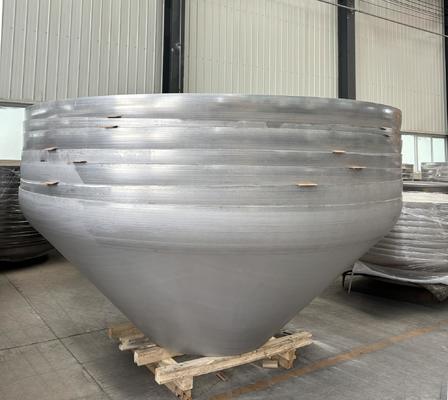

Large Image : SUS304 Stainless Steel Conical Dished Head - Half Apex Angle 45°, Small End Diameter 910mm, Large End Diameter 3016mm, Thickness 8mm

Product Details:

Place of Origin:	Henan, China
Brand Name:	Guojiang
Certification:	ASME, PED, GB, ISO
Model Number:	CSA(45°)2000/600 *6

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$25-10000
Packaging Details:	Wooden cases, wooden pallets, steel pallets, or customized according to customer requirements
Delivery Time:	10-30 days
Payment Terms:	T/T,L/C
Supply Ability:	50,000 pieces per month

Contact Now Chat Now

SUS304 Stainless Steel Conical Dished Head - Half Apex Angle 45°, Small End Diameter 910mm, Large End Diameter 3016mm, Thickness 8mm

description

Diameter:	76mm - 10000mm	Thickness:	1mm -300mm
Roughness:	RA 0.1-0.8μm	Customization:	Customise Products According To The Drawings And The Requirements
Material:	Aluminum, 304, 316, 321, 2205, Q235, A36, Q245R, Q345R, SA-516Gr.60/65/70, 16MnDR, S275JR Etc..	Downstream Aplications:	Industrial Dewar Flask Heads,on-board Gas Cylinder Heads,quick-cooling Storage Tank Heads,on-board Storage Tank Heads,heads For Food And Medical Equipment, ,water Purification Filter Pipeline End Cap，and Heads For Magnetic Resonance Equipment.

Product Overview

Henan Guojiang Precision Formed Head Co., Ltd. boasts over 12 years of experience in pressure vessel components, gaining an excellent reputation in the industry.

Our SUS304 stainless steel conical dished heads are trusted by enterprises in multiple countries worldwide. Designed for high-end pressure vessels in chemical processing, petroleum refining, food production, pharmaceutical manufacturing and other industries, this conical dished head features a precision-engineered structure and reliable performance, making it a preferred choice for durable pressure vessel components.

Product Specifications

Brand Name	GuoJiang
Specification Parameters	Half Apex Angle 45°, Small End Diameter 910mm, Large End Diameter 3016mm, Thickness 8mm
Specification Range	Diameter: 76mm - 10000mm; Thickness: 1mm - 200mm
Cone Angle Options	CSA(30°); CSA(45°); CSA(60°)
Reduction Ratio	Approximately 10%
Optional Materials	Carbon Steel, Stainless Steel, Duplex Steel, Super Duplex Steel, Aluminium, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Titanium Alloys, Zirconium, and various clad material combinations
Forming Processes	Hot forming, Cold forming
Surface Treatment	Sand Blasting, Pickling, Oil Coating, Descaling
Inspection Methods	Ultrasonic Testing (UT), Radiographic Testing (RT), Magnetic Particle Testing (MT), Penetrant Testing (PT), Time of Flight Diffraction (TOFD)
Applicable Standards	ASME; PED; GB
Application Fields	Oil, chemical industry, water conservancy, electric power, boilers, machinery, metallurgy, sanitary construction, food, beverage and other industries
Packaging Methods	Wooden cases, wooden pallets, steel pallets, or customised according to customer requirements
Customization Service	Customised products available
