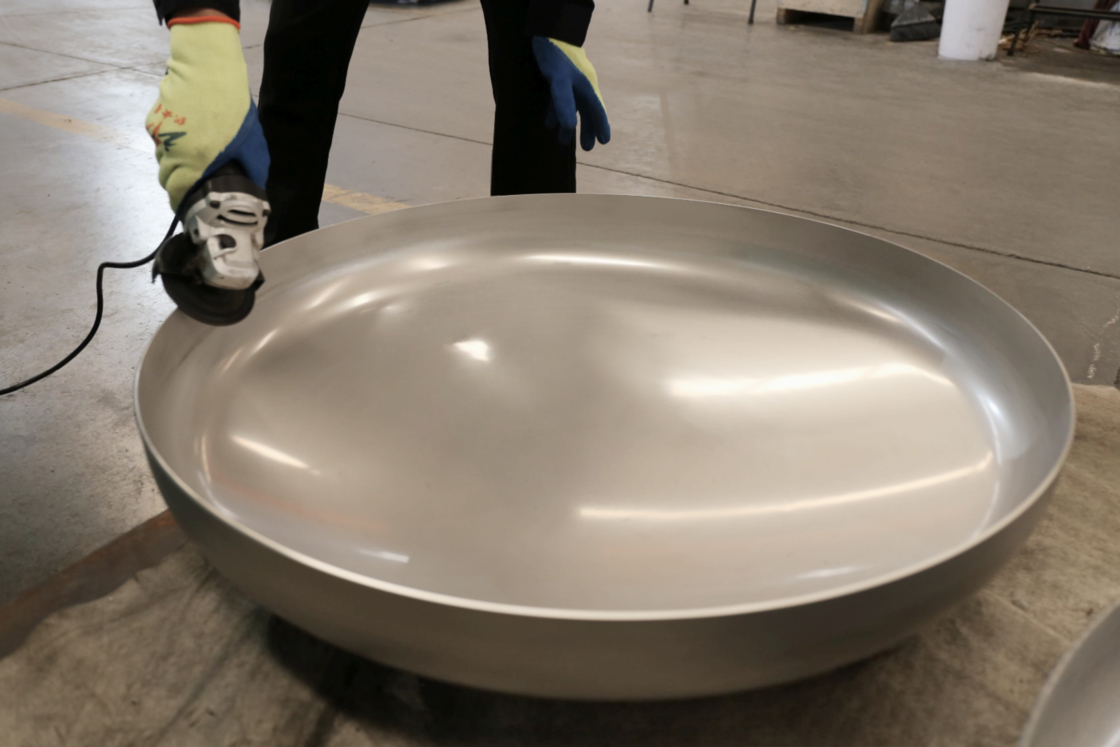

SUS304 Precision Sealed Head with 800mm Inner Diameter and 4mm Wall Thickness

SUS304 Precision Sealed Head with 800mm Inner Diameter and 4mm Wall Thickness
SUS304 Precision Sealed Head with 800mm Inner Diameter and 4mm Wall Thickness

Large Image :  SUS304 Precision Sealed Head with 800mm Inner Diameter and 4mm Wall Thickness

Product Details:
Place of Origin: Henan, China
Brand Name: GJ
Certification: ASME, PED, GB, ISO
Model Number: EHA 800×4
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $25-10000
Packaging Details: Wooden cases, wooden pallets, steel pallets, or customized according to customer requirements
Delivery Time: 10-30 days
Payment Terms: T/T,L/C
Supply Ability: 50,000 pieces per month
Contact Now Chat Now

SUS304 Precision Sealed Head with 800mm Inner Diameter and 4mm Wall Thickness

description
Diameter: 76mm - 10000mm Thickness: 1mm -300mm
Roughness: RA 0.1-0.8μm Customization: Customise Products According To The Drawings And The Requirements
Material: Aluminum, 304, 316, 321, 2205, Q235, A36, Q245R, Q345R, SA-516Gr.60/65/70, 16MnDR, S275JR Etc.. Downstream Aplications: Industrial Dewar Flask Heads,on-board Gas Cylinder Heads,quick-cooling Storage Tank Heads,on-board Storage Tank Heads,heads For Food And Medical Equipment, ,water Purification Filter Pipeline End Cap，and Heads For Magnetic Resonance Equipment.
Highlight:

SUS304 ellipsoidal head

,

800mm inner diameter ellipsoidal head

,

4mm wall thickness precision sealed head

SUS304 Ellipsoidal Head with 800mm ID and 4mm Thickness
Technical Specifications
Brand Name GuoJiang
Diameter Range 76mm - 10000mm
Thickness Range 2mm - 300mm
Reduction Ratio About 10%
Material Options
  • Carbon Steel (Q345R, Q235B, SA516 Gr.60/70)
  • Stainless Steel (SUS304, SUS316L, SUS321)
  • Duplex/Super Duplex (S31803, S32750)
  • Aluminium (6061, 5052)
  • Nickel & Nickel Alloys (Inconel 600, Hastelloy C276)
  • Copper & Copper Alloys (T2, H62)
  • Titanium & Its Alloys (Gr.2, Gr.5)
  • Zirconium & Cladded Materials
Manufacturing Processes
Forming Methods:
  • Hot Forming for thick materials (≥20mm) or high-strength alloys
  • Cold Forming for thin materials (≤20mm) and stainless steel
Surface Treatment Options:
  • Sand Blasting (Ra 1.6μm - 3.2μm)
  • Pickling for passivation film formation
  • Oil Coating (food-grade optional)
  • Mechanical/Chemical Descaling
  • Custom finishes, including mirror polishing (Ra≤0.8μm)
Quality Assurance
Inspection Standards:
  • PT (Liquid Penetrant Testing)
  • UT (Ultrasonic Testing)
  • RT (Radiographic Testing)
  • MT (Magnetic Particle Testing)
  • TOFD (Time of Flight Diffraction)
Certifications:
  • ISO 9001:2015
  • ASME "U" Stamp
  • PED Module H Certificate
Applications

Ideal for cryogenic gas cylinders, pressure vessels, nuclear magnetic resonance (NMR), food/pharmaceutical processing, and new energy applications. Market leader in cryogenic dewar heads with over 70% market share in China.

Packaging Options
  • Wooden Cases (waterproof, shockproof)
  • Steel Pallets (for heavy heads ≥500kg)
  • Wooden Pallets (stackable, ≥1000kg capacity)
  • Custom packaging solutions available
Customized Services
  • Full customisation of size, material, forming method, and surface treatment
  • Sample service available (5-10 pieces)
  • Quick turnaround: 20 days for standard heads, 30 days for custom orders

Tag:

Pressure Vessel Heads,

Ellipsoidal Dished Head,

Ellipsoidal Dish Head
