S30408 Stainless Steel Torispherical Dished Head Corrosion Resistant For Pressure Vessels

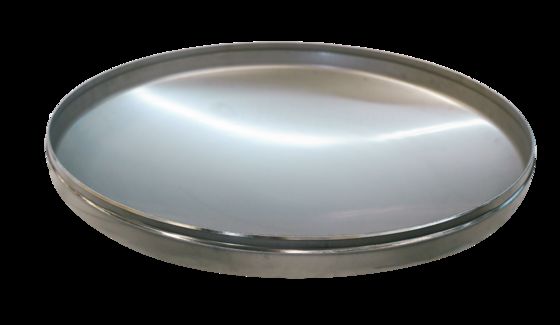

Large Image : S30408 Stainless Steel Torispherical Dished Head Corrosion Resistant For Pressure Vessels

Product Details:

Place of Origin:	Henan, China
Brand Name:	Guojiang
Certification:	ASME, PED, GB, ISO
Model Number:	THA 1100X4

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$25-10000
Packaging Details:	Wooden cases, wooden pallets, steel pallets, or customized according to customer requirements
Delivery Time:	10-30 days
Payment Terms:	T/T,L/C
Supply Ability:	50,000 pieces per month

Contact Now Chat Now

S30408 Stainless Steel Torispherical Dished Head Corrosion Resistant For Pressure Vessels

description

Material:	Aluminum, 304, 316, 321, 2205, Q235, A36, Q245R, Q345R, SA-516Gr.60/65/70, 16MnDR, S275JR Etc..	Diameter:	76mm - 10000mm
Thickness:	1mm -300mm	Customization:	Customise Products According To The Drawings And The Requirements
Downstream Aplications:	Industrial Dewar Flask Heads,on-board Gas Cylinder Heads,quick-cooling Storage Tank Heads,on-board Storage Tank Heads,heads For Food And Medical Equipment, ,water Purification Filter Pipeline End Cap，and Heads For Magnetic Resonance Equipment.	Roughness:	RA 0.1-0.8μm
Highlight:	S30408 Torispherical Dished Head , Torispherical Dished Head Corrosion Resistant , S30408 Stainless Steel Dished Head

S30408 Stainless Steel Reducing-Torispherical-Head with 1100mm Diameter and 4mm Thickness

Product Overview

Torispherical Head THA 1100*4 S30408 by Henan Guojiang Precision Formed Head. As a benchmark manufacturer in the domestic precision pressure vessel component field, Henan Guojiang has specialised in the R&D, production, and customisation of torispherical heads for over 12 years.

Specifications

Inner Diameter: 1100mm - Designed for small and medium-sized pressure vessels in chemical, pharmaceutical, and food processing industries
Nominal Thickness: 4mm - Optimised for working pressure range of 0.1MPa-50MPa with weakly corrosive/non-corrosive media
Material: S30408 stainless steel with a complete Material Test Certificate (MTC) for each batch

Manufacturing Advantages

Produced using cold forming technology to retain the original ductility and weldability of S30408 stainless steel. Our advanced hydraulic forming equipment ensures compliance with GB/T 25198 and ASME standards, producing smooth, uniform surfaces that prevent local stress concentration.

Quality Assurance

Inspection Process: 100% full inspection, including ultrasonic testing (UT), penetrant testing (PT), and 3D laser scanning
Compliance Standards: GB/T 25198-2023, ASME BPVC Section VIII Division 1, and PED 2014/68/EU directives
Certifications: ISO 9001:2015, ISO 14001:2015, and ASME "U" Stamp approval

Applications

Widely used in:

Chemical industry: Corrosive liquid storage tanks, high-pressure reaction vessels
Food and beverage industry: Dairy processing tanks, beverage storage equipment
Pharmaceutical industry: Sanitary reactors, sterile liquid storage containers
New energy and marine fields: Hydrogen storage tanks, battery material mixing tanks

Packaging & Customization

Packaging Solutions:

Export-grade fumigated wooden cases for single-unit precision packaging
Steel pallets with ≥ 500kg load capacity for bulk orders

Customisation Services:

Inner diameter customisation: 60mm-10000mm
Thickness customisation: 1mm-300mm
Free finite element analysis (FEA) stress calculation
2D/3D drawing design services
Sample service with 18 working day delivery cycle

Core Features

Reliable Structure: 1100mm inner diameter and 4mm thickness ensure uniform stress distribution
Hygienic & Corrosion-Resistant: Surface roughness Ra ≤ 0.8μm with excellent salt spray test results
Cost Optimized: Precise thickness design balances performance and procurement costs

From raw material procurement to finished product delivery, Henan Guojiang maintains strict quality standards. Our 1100×4 S30408 stainless steel torispherical head delivers stable performance and reliable quality, improving safety and efficiency for small and medium-sized pressure vessels.
