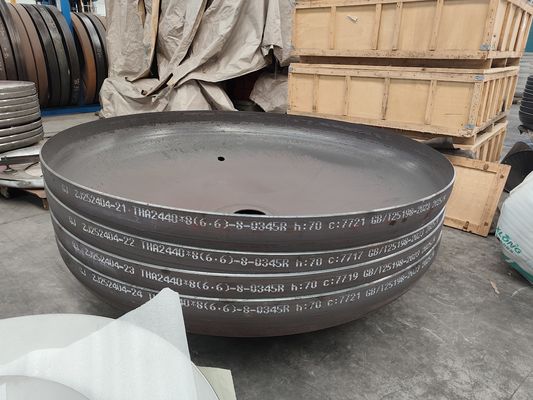

Carbon Steel Q345R Torispherical Head 2440mm Dia 8mm Thick High Pressure Vessel Dish Head

Carbon Steel Q345R Torispherical Head 2440mm Dia 8mm Thick High Pressure Vessel Dish Head
Carbon Steel Q345R Torispherical Head 2440mm Dia 8mm Thick High Pressure Vessel Dish Head

Large Image :  Carbon Steel Q345R Torispherical Head 2440mm Dia 8mm Thick High Pressure Vessel Dish Head

Product Details:
Place of Origin: Henan, China
Brand Name: Guojiang
Certification: ASME, PED, GB, ISO
Model Number: THA 2440X8
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $25-10000
Packaging Details: Wooden cases, wooden pallets, steel pallets, or customized according to customer requirements
Delivery Time: 10-30 days
Payment Terms: T/T,L/C
Supply Ability: 50,000 pieces per month
Contact Now Chat Now

Carbon Steel Q345R Torispherical Head 2440mm Dia 8mm Thick High Pressure Vessel Dish Head

description
Diameter: 76mm - 10000mm Thickness: 1mm -300mm
Processing Methods: Cold Stamping, Hot Stamping Customization: Customise Products According To The Drawings And The Requirements
Material: Aluminum, 304, 316, 321, 2205, Q235, A36, Q245R, Q345R, SA-516Gr.60/65/70, 16MnDR, S275JR Etc.. Downstream Aplications: Industrial Dewar Flask Heads,on-board Gas Cylinder Heads,quick-cooling Storage Tank Heads,on-board Storage Tank Heads,heads For Food And Medical Equipment, ,water Purification Filter Pipeline End Cap，and Heads For Magnetic Resonance Equipment.
Highlight:

Q345R Torispherical Head

,

Torispherical Head 2440mm

,

Carbon Steel Vessel Dish Head

Carbon Steel (Q345R) Torispherical Head with 2440mm Diameter and 8mm Thick
As a benchmark manufacturer in the domestic precision pressure vessel component field, Henan Guojiang has specialised in the R&D, production, and customisation of torispherical heads for over 12 years. Our products are recognised by customers in more than 10 countries worldwide, meeting strict requirements for high-standard industrial applications.
Product Specifications
  • Inner Diameter: 2440mm - Designed for small and medium-sized pressure vessels in chemical, pharmaceutical, and food processing industries
  • Nominal Thickness: 8mm - Optimised for working pressure range of 0.1MPa-50MPa with weakly corrosive/non-corrosive media
  • Material: Q345R
  • Material Composition: Contains carbon (C≤0.20%), manganese (Mn 1.20-1.70%) and other elements, with yield strength ranging from 265-345MPa depending on thickness, and tensile strength of 470-640MPa.
Manufacturing Advantages
Our advanced hydraulic forming equipment ensures compliance with GB/T 25198 and ASME standards, producing smooth, uniform surfaces that prevent local stress concentration.
Quality Assurance
  • Inspection Process: 100% full inspection, including penetrant testing (PT), ultrasonic testing (UT), and 3D laser scanning
  • Compliance Standards: ASME BPVC Section VIII Division 1, GB/T 25198-2023, and PED 2014/68/EU directives
  • Certifications: ISO 14001:2015, ISO 9001:2015, and ASME "U" Stamp approval
Applications
Chemical industry: Corrosive liquid storage tanks, high-pressure reaction vessels
Food and beverage: Dairy processing tanks, beverage storage equipment
Pharmaceutical: Sanitary reactors, sterile liquid storage containers
New energy/marine: Hydrogen storage tanks, battery material mixing tanks
Packaging & Customization
Packaging Solutions: Export-grade fumigated wooden cases for single-unit precision packaging; Steel pallets with ≥ 500kg load capacity for bulk orders.
Customisation Services: Inner diameter (60mm-10000mm), thickness (1mm-300mm), free finite element analysis (FEA) stress calculation, 2D/3D drawing design services, and sample service with 18 working day delivery cycle.
Core Features
  • Reliable Structure: 2440mm inner diameter and 8mm thickness ensure uniform stress distribution
  • Cost Optimised: Precise thickness design balances performance and procurement costs
From raw material procurement to finished product delivery, Henan Guojiang maintains strict quality standards. Our torispherical head delivers stable performance and reliable quality, improving safety and efficiency for small and medium-sized pressure vessels.
