S30408 Ellipsoidal Head 650mm Open Inner Diameter 4mm Thickness

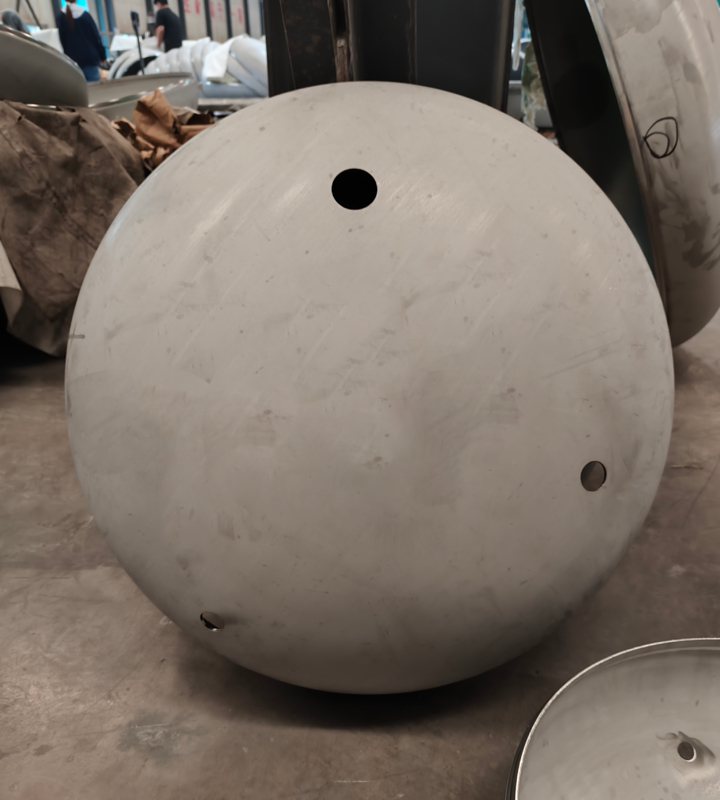

Large Image : S30408 Ellipsoidal Head 650mm Open Inner Diameter 4mm Thickness

Product Details:

Place of Origin:	Henan, China
Brand Name:	Guojiang
Certification:	ASME, PED, GB, ISO
Model Number:	EHA 650×4

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$25-10000
Packaging Details:	Wooden cases, wooden pallets, steel pallets, or customized according to customer requirements
Delivery Time:	10-30 days
Payment Terms:	T/T,L/C
Supply Ability:	50,000 pieces per month

Contact Now Chat Now

S30408 Ellipsoidal Head 650mm Open Inner Diameter 4mm Thickness

description

Material:	304, 316, 321, 2205, Q235, A36, Q245R, Q345R, SA-516Gr.60/65/70, 16MnDR, S275JR	Diameter :	76mm - 10000mm
Thickness:	1mm -300mm	Roughness:	RA 0.1-0.8μm
Customization:	Customise Products According To The Drawings And The Requirements	Downstream Aplications:	Industrial Dewar Flask Heads,on-board Gas Cylinder Heads,quick-cooling Storage Tank Heads,on-board Storage Tank Heads,heads For Food and medical Equipment, ,water Purification Filter Pipeline End Cap，and Heads For Magnetic Resonance Equipment.
Highlight:	S30408 Ellipsoidal Head , Ellipsoidal Head 650mm , Lightweight Pressure Vessel Head

S30408 Ellipsoidal Dished Head with 650mm Open Inner Diameter and 4mm Thickness

Precision-engineered stainless steel dished head designed for the manufacturing industry, offering reliable performance in various industrial applications.

Product Overview

Henan Guojiang specialises in precision pressure vessel components with over 12 years of manufacturing experience. Our dish heads are exported to more than 10 countries, recognised for their reliability and precision in industrial applications.

Core Specifications

Open Inner Diameter	650mm (customizable for small storage tanks and atmospheric pressure vessels)
Thickness	4mm (optimised for atmospheric to low-pressure conditions: 0.1MPa-0.5MPa)
Material	S30408

Manufacturing Advantages

Cold pressing forming process preserves the metallographic structure of SUS304 stainless steel, ensuring structural stability and sealing adaptability. Designed for quick installation without secondary processing.

Quality Assurance

Inspection Protocols: 100% full inspection, including UT, PT, and dimensional checks
Compliance: ASME BPVC Sec.VIII Div 1, GB/T 25198-2010, GB 150.4 standards
Certifications: ISO 14001:2015, ISO 9001:2015, ASME "U" Stamp approval

Applications

Small industrial water storage tanks
Atmospheric pressure chemical fluid transfer equipment
Civil and commercial water purification equipment storage tanks

Packaging & Customization

Customisation: Inner diameter (76mm-10000mm), thickness (2mm-300mm), and shape adjustments available
Packaging: Shock-absorbing bubble film with reinforced cartons

Key Features

Excellent rust resistance for reduced maintenance costs
Lightweight design balances durability and material efficiency
Versatile compatibility with mainstream storage tank models
Precise sizing for direct connection with equipment interfaces
