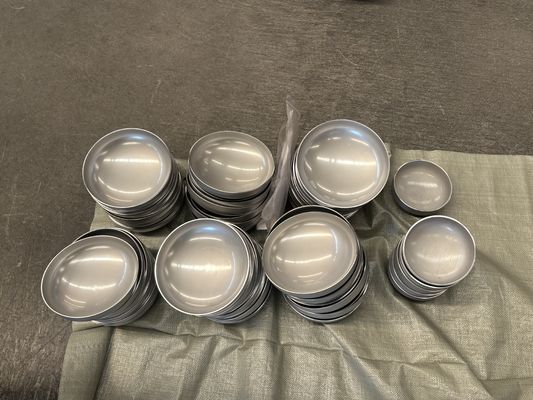

S30408 Pipe End Cap With 159mm Diameter And 6mm Thickness For Pressure Vessels

S30408 Pipe End Cap With 159mm Diameter And 6mm Thickness For Pressure Vessels
S30408 Pipe End Cap With 159mm Diameter And 6mm Thickness For Pressure Vessels

Large Image :  S30408 Pipe End Cap With 159mm Diameter And 6mm Thickness For Pressure Vessels

Product Details:
Place of Origin: Henan, China
Brand Name: GJ
Certification: ASME, PED, GB, ISO
Model Number: EHB 159x6
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $25-10000
Packaging Details: Wooden cases, wooden pallets, steel pallets, or customized according to customer requirements
Delivery Time: 10-30 days
Payment Terms: T/T,L/C
Supply Ability: 50,000 pieces per month
Contact Now Chat Now

S30408 Pipe End Cap With 159mm Diameter And 6mm Thickness For Pressure Vessels

description
Features: Lightweight, Leak-Proof Material: Aluminum, 304, 316, 321, 2205, Q235, A36, Q245R, Q345R, SA-516Gr.60/65/70, 16MnDR, S275JR Etc..
Diameter: 76mm - 10000mm Thickness: 1mm -300mm
Customization: Customise Products According To The Drawings And The Requirements Downstream Aplications: Industrial Dewar Flask Heads,on-board Gas Cylinder Heads,quick-cooling Storage Tank Heads,on-board Storage Tank Heads,heads For Food And Medical Equipment, ,water Purification Filter Pipeline End Cap，and Heads For Magnetic Resonance Equipment.
Highlight:

Pipe End Cap 6mm

,

Pressure Vessels Pipe End Cap

,

Pipeline End Cap 159mm

S30408 EHB Pipe End Cap: 159mm Diameter + 6mm Thickness For Pressure Vessel
Basic Information
Model & Specification: EHB159*6, inner diameter 159mm, thickness 6mm, suitable for medium-caliber pipes commonly used in industrial pipeline systems.
Material Options:
  • Mainly aluminum alloys 6061 and 5052
  • Alloy 6061 has high strength and good weldability, suitable for pipeline scenarios requiring structural support
  • Alloy 5052 has excellent corrosion resistance, suitable for humid or corrosive environments
  • Customizable materials include carbon steel (Q235B, Q345R), stainless steel (SUS304, SUS316L) and duplex steel (S31803)
  • All aluminum materials are sourced from certified suppliers with complete Material Test Certificates (MTC)
Core Performance & Design
  • Lightweight & Structural Stability: Weight reduced by 30%-50% compared to steel, stable under 0.1MPa-12MPa pressure
  • Precise Dimension Control: Inner diameter tolerance ≤ ±1mm, opening concentricity tolerance ≤ ±0.5mm
  • Leak-Proof & Integrated Design: Eliminates need for secondary welding, reducing leakage risk
  • Corrosion Resistance: Natural oxide film resists atmospheric corrosion, weak acids and alkalis
Forming & Surface Treatment
Forming Process: Cold forming with 800-ton hydraulic presses, hot forming for thick walls (350℃-500℃)
Surface Treatment Options:
  • Chemical polishing (Ra ≤ 1.6μm)
  • Anodizing (customizable colors)
  • Passivation treatment
  • Anti-rust coating
  • Mirror polishing (Ra ≤ 0.8μm) or sandblasting (Ra 1.6μm-3.2μm)
Inspection Standards
Quality Tests: 100% ultrasonic testing, liquid penetrant testing, dimensional verification, pressure tests (1.5× rated pressure)
Certifications: ASME BPVC Sec.VIII Div.1, PED 2014/68/EU, GB/T 25198-2010, JIS B8243, ISO 9001:2015, ASME "U" Stamp, PED Module H
Practical Application Scenarios
  • Food & Beverage Industry: Juice, dairy and edible oil pipelines
  • Chemical Industry: Solvent conveying and reactor connecting pipes
  • New Energy Field: Battery electrolyte and hydrogen energy equipment
  • Water Treatment: Pressure filters and water storage pipelines
  • Pharmaceutical Industry: Medicinal liquids and intermediates pipelines
Packaging & Services
Packaging Solutions: Waterproof wooden cases, pallet packaging (12-15 pieces per pallet), vacuum packaging options
Customization & Services: Diameter, thickness, opening size customization; 3-5 samples available; standard delivery in 20 days, custom in 30 days

Tag:

Pipeline End Cap,

Pressure Vessel End Cap,

S30408 Pipe End Cap
