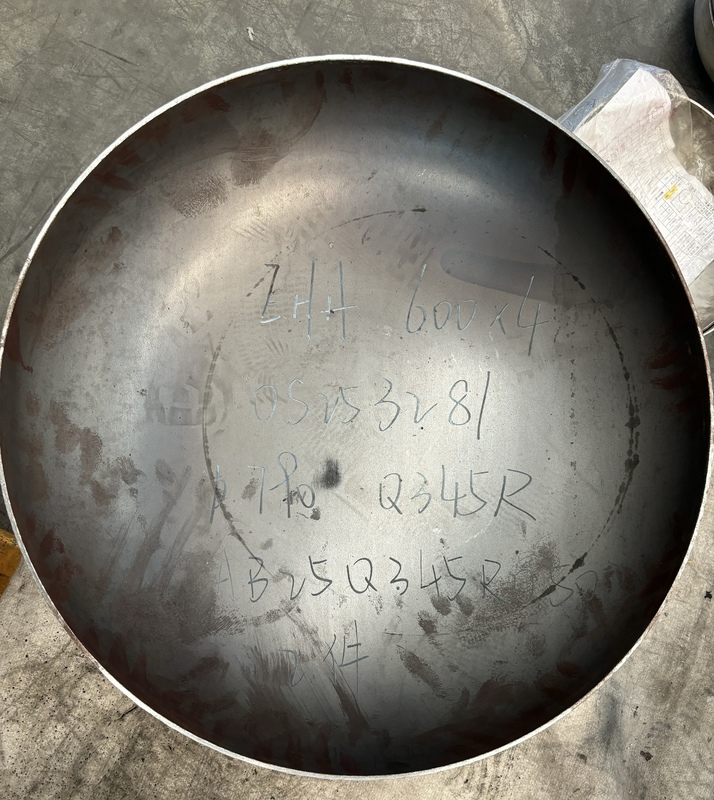

Pressure Vessel Carbon Steel Head 600mm Diameter 4mm Thickness Elliptical Head

Pressure Vessel Carbon Steel Head 600mm Diameter 4mm Thickness Elliptical Head
Pressure Vessel Carbon Steel Head 600mm Diameter 4mm Thickness Elliptical Head

Large Image :  Pressure Vessel Carbon Steel Head 600mm Diameter 4mm Thickness Elliptical Head

Product Details:
Place of Origin: Henan, China
Brand Name: Guojiang
Certification: ASME, PED, GB, ISO
Model Number: EHA 600×4
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $25-10000
Packaging Details: Wooden cases, wooden pallets, steel pallets, or customized according to customer requirements
Delivery Time: 10-30 days
Payment Terms: T/T,L/C
Supply Ability: 50,000 pieces per month
Contact Now Chat Now

Pressure Vessel Carbon Steel Head 600mm Diameter 4mm Thickness Elliptical Head

description
Material: Aluminum, 304, 316, 321, 2205, Q235, A36, Q245R, Q345R, SA-516Gr.60/65/70, 16MnDR, S275JR Etc.. Diameter: 76mm - 10000mm
Thickness: 1mm -300mm Customization: Customise Products According To The Drawings And The Requirements
Roughness: RA 0.1-0.8μm Forming Method: Hot Forming;Cold Forming
Highlight:

4mm Elliptical Head

,

Carbon Steel Head 600mm

,

Pressure Vessel Carbon Steel Head

Q345R 600×4 Carbon Steel EHA - Efficient Pressure-Bearing Head for Pressure Vessels
Carbon Steel Elliptical Pressure Vessel Head 600mm Diameter 4mm Thickness. Henan Guojiang Precision Formed Head Co., Ltd. has over 12 years of experience in pressure vessel components. This product has gained trust from enterprises in more than 10 countries worldwide and is especially suitable for pressure vessels in chemical, thermal, and environmental protection industries.
Core Specification Parameters
Parameter Value Description
Inner Diameter 600mm For small/medium pressure vessels, diameter deviation ≤±0.6mm, ensuring accurate connection with cylinders
Nominal Thickness 4mm Optimized by pressure simulation, applicable for 0.1MPa - 60MPa, compatible with corrosive/non-corrosive media
Structural Standard 2:1 Elliptical Ratio Smooth curvature, disperses internal pressure, improves pressure-bearing stability
Manufacturing Advantages
  • Hot Press Forming: Processed by a 1200-ton hydraulic press with hot pressing, ensuring material stability and improving production efficiency
  • Precision & Compliance: Complies with GB/T 25198-2023 and API 650 standards for domestic and international pressure vessel production
  • Comprehensive Inspection: Passes UT (Ultrasonic Testing) and PT (Penetrant Testing) to ensure product quality
Application Fields
  • Chemical Industry: Neutral liquid storage tanks, medium-low pressure reactors
  • Thermal Industry: Pressure tanks for heating systems, heat exchanger heads
  • Environmental Protection: Sewage treatment pressure tanks, purified water storage containers
  • Machinery Industry: Energy storage tanks for hydraulic systems, compressed air storage tanks
Core Features
  • Reliable Structure: Scientific design with uniform stress distribution extends service life
  • Strong Adaptability: Compatible with medium-low pressure conditions across industries
  • Cost-Effective: Optimized thickness and material selection balance performance and cost
  • Global Compatibility: Complies with international standards for seamless supply chain integration
Quality Certifications
Holds ISO 9001:2015 Quality Management System Certification and ISO 14001:2015 Environmental Management System Certification, meeting high-quality requirements for industrial pressure vessel components.
Packaging & Customization Services
  • Packaging: Export-grade wooden crates/steel pallets with shockproof and waterproof protection
  • Customization: Supports size customization (100mm - 8000mm inner diameter, 2mm - 50mm thickness) with technical support

Tag:

Dish Head For Pressure Vessel,

Elliptical Dished Head,

Elliptical Dished Heads
